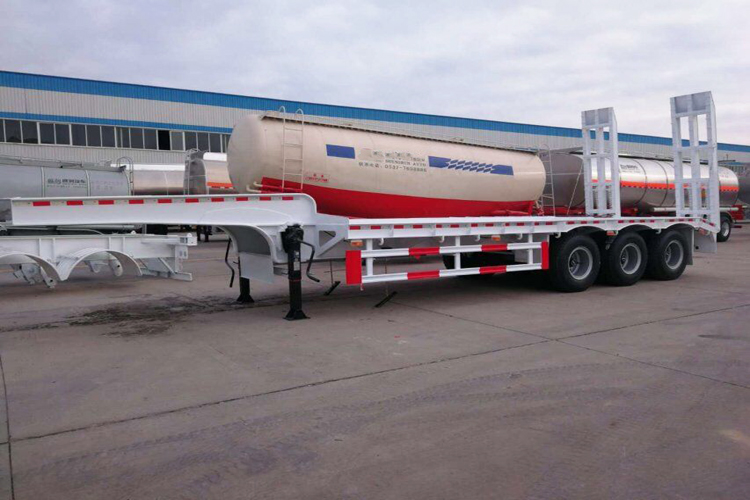

3 Axles Low Bed Semi Trailer Sale In Africa 50 Ton With Ramp 12 Wheelers

    Buy cheap 3 Axles Low Bed Semi Trailer Sale In Africa 50 Ton With Ramp 12 Wheelers from wholesalers

    Buy cheap 3 Axles Low Bed Semi Trailer Sale In Africa 50 Ton With Ramp 12 Wheelers from wholesalers
    • Buy cheap 3 Axles Low Bed Semi Trailer Sale In Africa 50 Ton With Ramp 12 Wheelers from wholesalers
    • Buy cheap 3 Axles Low Bed Semi Trailer Sale In Africa 50 Ton With Ramp 12 Wheelers from wholesalers

    3 Axles Low Bed Semi Trailer Sale In Africa 50 Ton With Ramp 12 Wheelers

    Ask Lasest Price
    Brand Name : Fudeng
    Model Number : SDFD1702 low bed trailer
    Certification : CE, ISO, CCC, SGS, ADR
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 600 sets per month
    Delivery Time : 25-40 days after 30% deposit
    Price : Negotiation
    • Product Details
    • Company Profile

    3 Axles Low Bed Semi Trailer Sale In Africa 50 Ton With Ramp 12 Wheelers


    3 Axles Low Bed Semi Trailer Sale In Africa 50 Ton With Ramp 12 Wheelers


    Low loaders cross into several other trailer categories, with some models offering extendable frames that can be adjusted to allow for oversized machinery to ride on board. Models may also feature beavertail ramps at the rear, with pneumatic or hydraulic rams allowing this to be raised and lowered remotely for added convenience. Flip toe ramps are not out of the question for this type of trailer, while outriggers may be present, improving stability during loading and unloading. And with very heavy payloads destined for this type of trailer, it is crucial that operators are made aware of the features and benefits on offer.

    Our low bed semi trailer advantages

    1. The main beam is designed as special double vertical plate which is more solid than single vertical plate.
    2. The gooseneck is inside and outside reinforced to achieve heavy duty tranportation.
    3. The ladder and trailer body are connected by mechanical spring make it easy operate and high-intensive.
    4. The side beams are I shaped steel beam structures. Checkered floor aims increase friction and prevent cargo from skidding.

    3 Axles Low boy semi trailer with Widen the device trailer for sale



    Low bed semi trailer's dimension and configurations as follows:


    Specifications
    FrameWelding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
    Frame BeamUpper and lower plate is20mm,middle is10mm.height is 500 mm
    Frame FloorThe Thickness is 3-8 mm flat bed
    Axle3 axles or customized, BPW/FUWA/HUAJING brand
    Landing GearJOST (D200T)or CHINA BRAND 28T
    King PinJOST 2.00 or 3.5 inch bolt-in king pin
    SuspensionMechanical suspension/Germany or America type/air suspension
    Leaf Spring90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer
    Pneumatic Braking SystemWABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
    Rim8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
    Tire11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
    ABSOptional
    AccessoriesOne standard tool box
    Voltage24V
    Packing and shipping
    PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
    Shipping TermsBy Bulk Cargo/RORO/ 40 HQ

    If you transport heavy duty Equipment we can according to your requirement to design the dimension .


    3 Axles Low Bed Semi Trailer Sale In Africa 50 Ton With Ramp 12 Wheelers


    Our low loader is adopted to transport construction machines, lifting vehicles and industrial parts.


    Welcome to contact us to get more information.


    You transport Heavy Goods and we can addition the widen device for you .


    If you are interested in our products please feel free to contact us , We can recommend the best type for you .


    Welcome to ask more information and welcome to visit our company !
