    Tri Axle Low Bed Semi Truck Trailer For Sale 60 Ton Heavy Machine Transport

    Ask Lasest Price
    Brand Name : Fudeng
    Model Number : SDFD1702 low bed trailer
    Certification : CE, ISO, CCC, SGS, ADR
    Payment Terms : L/C, T/T
    Supply Ability : 600 sets per month
    Delivery Time : 25-40 days after 30% deposit
    Price : negotiation
    • Product Details
    • Company Profile

    Tri Axle Low Bed Semi Truck Trailer For Sale 60 Ton Heavy Machine Transport


    Tri axle low bed semi truck trailer for sale 60 ton heavy machine transport


    Low loaders cross into several other trailer categories, with some models offering extendable frames that can be adjusted to allow for oversized machinery to ride on board. Models may also feature beavertail ramps at the rear, with pneumatic or hydraulic rams allowing this to be raised and lowered remotely for added convenience. Flip toe ramps are not out of the question for this type of trailer, while outriggers may be present, improving stability during loading and unloading. And with very heavy payloads destined for this type of trailer, it is crucial that operators are made aware of the features and benefits on offer.

    Our low bed semi trailer advantages

    1. The main beam is designed as special double vertical plate which is more solid than single vertical plate.
    2. The gooseneck is inside and outside reinforced to achieve heavy duty tranportation.
    3. The ladder and trailer body are connected by mechanical spring make it easy operate and high-intensive.
    4. The side beams are I shaped steel beam structures. Checkered floor aims increase friction and prevent cargo from skidding.

    Specifications
    Dimension13m×3m×1.7m (Outside)
    Payload40T
    Tare weightAbout 11T
    Bottom Platform4mm thick checkered plate or flat plate
    Chassis
    FrameWelding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
    Frame BeamUpper and lower plate is 16 mm, middle is 8mm.height is 500 mm
    Axle3 axles 13T FD brand
    Landing GearStandard 28T JOST Brand
    King Pin2.00 or 3.5 inch bolt-in king pin JOST Brand
    SuspensionMechanical suspension
    Leaf Spring90mm(W)*16mm(T)*10 Layer
    Pneumatic Braking System6 relay valve; Spring brake chamber (TKL brand) WABCO brand
    Rim9.0-20 optional
    Tire11.00R20 12pcs
    AccessoriesOne standard tool box
    Voltage24V

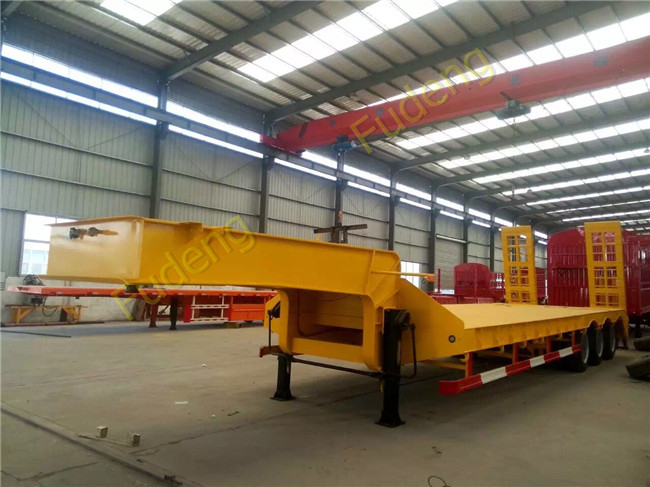

    Tri Axle Low Bed Semi Truck Trailer For Sale 60 Ton Heavy Machine Transport

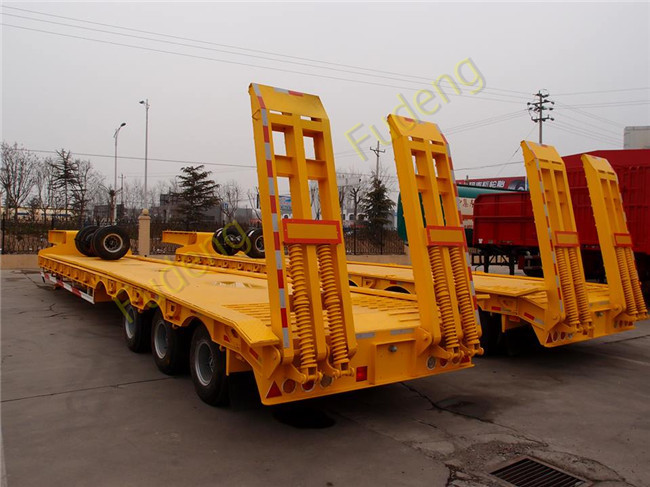

    Tri Axle Low Bed Semi Truck Trailer For Sale 60 Ton Heavy Machine Transport
