Brand Name : | Fudeng |
Model Number : | SDFD1702 low bed trailer |
Certification : | CE, ISO, CCC, SGS, ADR |
Payment Terms : | L/C, T/T |
Supply Ability : | 600 sets per month |
Delivery Time : | 25-40 days after 30% deposit |
Price : | negotiation |

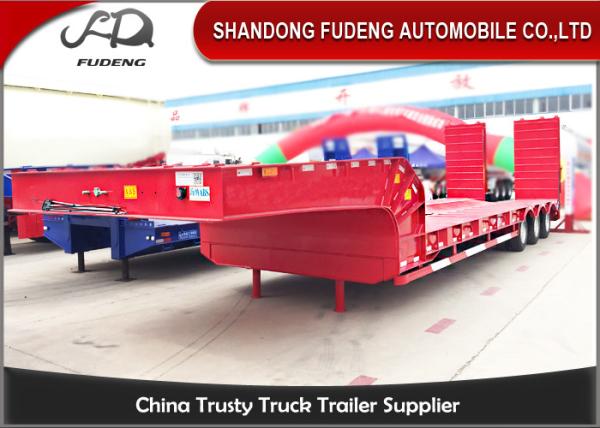

Low Loader has been designed primarily for heavy construction machines, but
depending on user requirements can be adapted to suit commercial
and agricultural vehicles when necessary.
AREAS OF USE
The low bed trailer is suitable for the transport of:
Low Bed Trailer | |||
Specification | Dimensions (mm) | 13000x3000-3500x1650 (Standard Or Customized) | |
Axle | Number | Three(customized) | |
Payload | 13T/16T | ||
Brand | BPW /FUWA/Chinese Brand | ||
Suspension | Mechanical Suspension/ Pneumatic Suspension | ||
Rim | 6.5-20/7.5-20/8.00-20/8.5-20 | ||
Ladder | Spring/ Mechanical / Hydraulic ladder | ||
Tires | Tires | 8.25R22.5/10.00R20/11.00R20/12.00R20 | |
Brand | Triangle or Double Coin Brand | ||
King Pin | Size | 2.0’’ or 3.5’’ traction pin | |
Brand | JOST Brand2.0 or 3.5 inch(bolted or welded type ) or China famous brand | ||
Landing Gear | JOST brand D200T or Chinese brand 28Tons28Tons | ||
Frame | Main beam | The height of the beam is 450/500mm,upper plate is 14mm down . | |
Bottom platform | 3-6mm thick checkered plate | ||
Additional | ABS | Optional | |
Light | LED light |
![]() |
