    60ton Hydraulic Lowbed Low Deck Tri-axles Low Loader Cargo Semi Truck Trailer

    Ask Lasest Price
    Brand Name : FUDENG Brand Low bed trailer
    Model Number : Low bed trailer
    Certification : CE , ISO,ADR/DOT
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Units Per Month
    Delivery Time : 20days after deposit
    Price : negotiation
    • Product Details
    • Company Profile

    60ton Hydraulic Lowbed Low Deck Tri-axles Low Loader Cargo Semi Truck Trailer

    60ton Hydraulic Lowbed Low Deck Tri-axles Low Loader Cargo Semi Truck Trailer


    Low Bed Trailer which is knows also low loader and can carry heavy loads , excavators , construction machines, transformer, generator , cranes , caravans , army tanks and different kind of big machines. Lowbed Semi Trailers can be produced between 2 axles to 8 axles and loading capacity starting from 20 Tons to 180 Tons , rear or front loading Lowbed Trailers and platform as customer demand with different kind of specification according to demand.


    Features of Low Bed Trailer:

    Mechanical or hydraulic climbing ramp is an option for easy loading and unloading
    Lower height (hydraulic and air suspension be able to adjust height)
    Detachable gooseneck is an option
    Small turning radius, up to 55° steering angle
    Both automatically and manually all wheels steering
    Drop deck minimize trailer’s platform height, increase traffic ability for over height cargo
    Side bracket is an option(for increase overall width), removable and swinging


    LOW BED TRAILER Specification:

    Product NumberPLY8324B
    Outside Dimensions13000x3000x1750mm(As the buyer's request)
    Color/LogoCustomized
    Tare Weight9.0ton
    Rated Load60ton
    Axle BrandFUWA/BPW, other brand optional
    No. of the Axle3pcs
    Axle load13ton
    Tyre Specations12R22.5,11.00R20, other optional
    Wheel rim9.0-22.5 better brand 12pcs
    Spare tire carrier1 set
    No. of the Tyre12+1(Spare tyre)
    King Pin90#/50#
    Landing LedJUSt brand two-speed, manual operating, heavy duty landing gear 28ton
    LadderMechanical ladder
    SuspensionMechanic/Air Bag/Independent Type Optional
    Leaf Spring6pcs*90*8pcs
    Brake SystemDual Lines Braking System With Automatic Air Chambers,Four double and two single chamber
    Electric Sustem24V, 7core socket, lights according to European standards.
    Material of the Main BeamHeavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 20mm,width140mm;Middle Flange 14mm height 500mm;bottom flange20mm,width 140mm
    PaintingComplete chassis sand blsting to clean rust,1 coat of anticorrosive, 2 coats of final paint

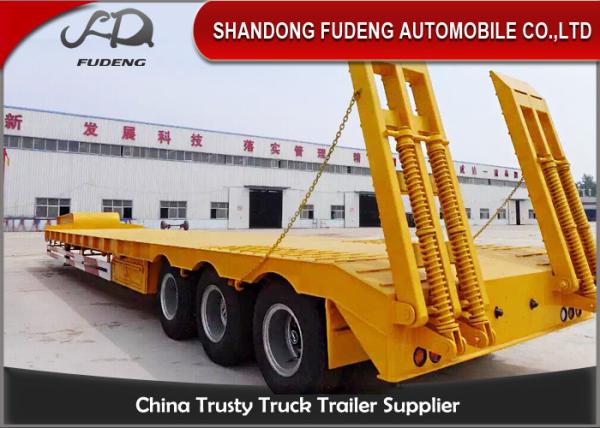

    3 Axles low bed semi trailers.

    60ton Hydraulic Lowbed Low Deck Tri-axles Low Loader Cargo Semi Truck Trailer

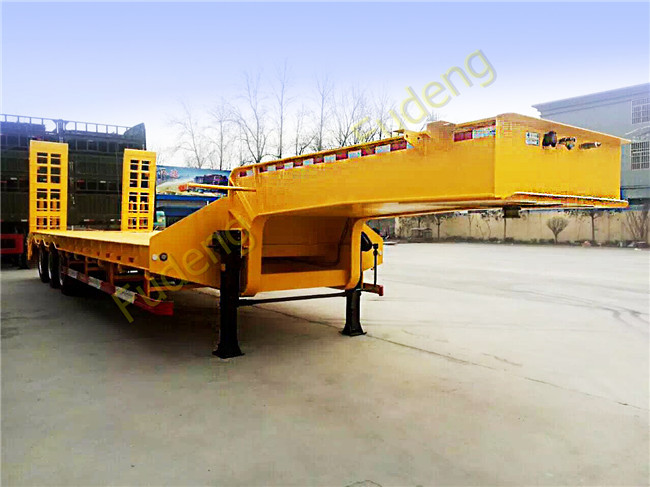

    60ton Low bed semi trailers

    60ton Hydraulic Lowbed Low Deck Tri-axles Low Loader Cargo Semi Truck Trailer


    Factory Overview.

    60ton Hydraulic Lowbed Low Deck Tri-axles Low Loader Cargo Semi Truck Trailer


    Welcome to visit our factory.
