Air bag suspension 50000 Liters Fuel Tank Semi Trailer Gasoline Transport

Product Categories

Shandong Fudeng Automobile Co, Ltd.

Contact Now

Air bag suspension 50000 Liters Fuel Tank Semi Trailer Gasoline Transport

Ask Lasest Price
Brand Name :	Fudeng
Model Number :	SDFD17012
Certification :	CE, ISO9001, CCC, ADR, DOT, SGS, etc
Payment Terms :	T/T, L/C or negotiate
Supply Ability :	600 sets per month
Delivery Time :	25-40 days after 30% deposit
Price :	negotiation

Add to Cart

Product Details
Company Profile

Air bag suspension 50000 Liters Fuel Tank Semi Trailer Gasoline Transport

Fudeng tanker trailer are production of aluminum or stainless steel and are used to transport fuels, water, milk starting from 25m3 to 50m3 in vacuum, potable and non potable. Tanker trailers are designed for tough road and best storage conditions.

Fudeng offers tanker trailer with heavy duty construction, various suspension options, trailer size options, tank material options, and a variety of shape options. To overcome your expectations, we can build a entirely customizable tanker trailer with the highest standards.

The configuration is just for reference. Welcome to contact us and tell your needs ! We will provide suitable products for you.

Fuel tank trailer specification
Dimension	12000mm2490mm3990mm or customized
Volume(m³)	50000 Liters
Tare weight	About 10 ton
Tanker Body thickness	5mm /Q345B carbon steel /aluminum
End Plate thickness	6mm /Q345B carbon steel /aluminum/stainless steel
Manhole Cover	Carbon steel Aluminum alloy API manhole cover, 500mm
Bottom Valve	Aluminum API Pneumatic Bottom Valve
Discharging Valve	Diameter is 3 or 4 inch
Discharging Pipe	4” rubber hose, 2 pcs, 6m/each
Compartments	Optional
Chassis
Main Beams	Q345B carbon steel or T700 high-intensive steel, I Beam height 500mm Upper plate 14mm, lower is 16mm, middle is 8mm
Axle	3 axles, 13T and 16T brake pad American type, FUWA or Chinese brand
Landing Gear	Standard 28T double speed, JOST(D200T) or Chinese brand
King Pin	5.0(2 inch)/9.0(3.5 inch) JOST(D200T) or Chinese brand
Suspension	Mechanical suspension or Air suspension Thicken
Leaf Spring	90mm(W)13mm(T)10 Layer/90mm(W)16mm(T)10 Layer/ 100mm(W)16mm(T)10 Layer
Pneumatic Braking System	6 air chamber, 3 axles synchronization WABCO brand
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be Optional
ABS	Optional
Accessories	One standard tool box
Voltage	24V

What kind of accessories is available? 1. Emergency valves; 2. Vapor Recovery System: 3. Sea valves; 4. Anti-flooding probe; 5. European standard manhole cover: 6. antistatic wire. 7. API customized with the valves . It can be used for transporting Diesel, gasoline, methanol, ethanol and so on. All the parts that we used in the semi trailers are reliable brands.

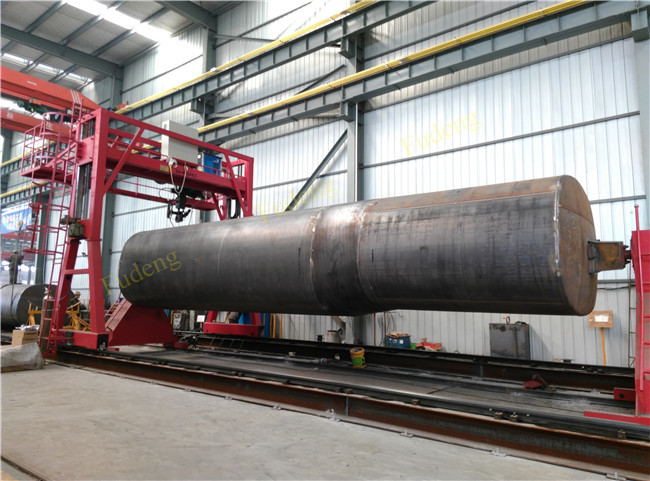

Our workshop

Air bag suspension 50000 Liters Fuel Tank Semi Trailer Gasoline Transport

Fuel tanker export to Philippines

Air bag suspension 50000 Liters Fuel Tank Semi Trailer Gasoline Transport
