BPW 12 ton axle fuel tanker semi truck trailer air suspension
Custom-built tank trailers by Fudeng can be built according to
industry standards to transport crude oil and petro-chemicals to
and from your destination. When you use Fudeng products, you can
travel with confidence.
1. Fudeng’s custom engineered Petro-Chemical trailers are the
lightest on the market.
2. Proven two-piece barrel design with a single circumferential
seam.
3. Industries widest sheet material minimizes barrel seams.
4. Designed for ease of operation and simple maintenance.
5. A wide variety of piping, vapor recovery, and pumping options
available, including, factory-applied Tnemec Lining.

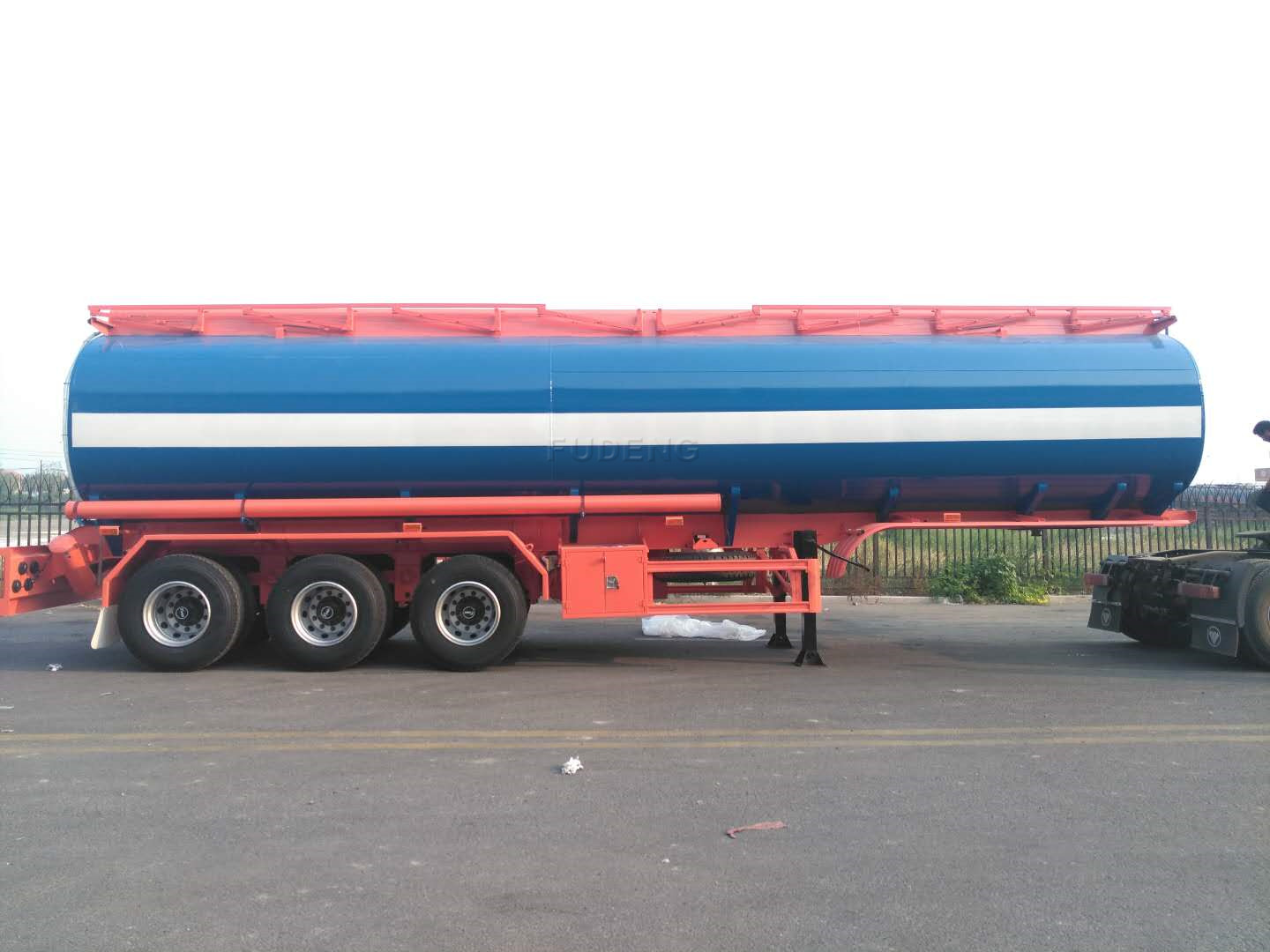

3 Axles 32000 Litres Fuel Tank trailer
Specification for Tank trailer as follows:
Fuel tanker trailer Chassis
|
| Main Beams | Q345B carbon steel or T700 high-intensive steel, I Beam height 500mm Upper plate 14mm, lower is 16mm, middle is 8mm |
| Axle | 3 axles, 13T and 16T brake pad American type, FUWA or Chinese brand |
| Landing Gear | Standard 28T double speed, JOST(D200T) or Chinese brand |
| King Pin | 5.0(2 inch)/9.0(3.5 inch) JOST(D200T) or Chinese brand |
| Suspension | Mechanical suspension or Air suspension Thicken |
| Leaf Spring | 90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/
100mm(W)*16mm(T)*10 Layer |
| Pneumatic Braking System | 6 air chamber, 3 axles synchronization WABCO brand |
| Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
| Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be Optional |
| ABS | Optional |
| Accessories | One standard tool box |
| Voltage | 24V |
The basic equipment is of valves, manhole, baffles, pipes, ladder,
etc.
For optional equipment, pump, dispenser, water box, tool box, EU
subsea valve, static electricity wire coil, gasoline vapor recovery
unit, spill-free alarm, bottom loading devices, etc.
You can tell us your requests, we customize for you!
This tank trailer is what we designed for our customer. There are 7 cabins and each cabin have different volume.
Our workshop for manufacturing
1.Our factory use high quality carbon steel ;
2.Machine and workman welding technical is very good ;
3.The production data is short in our factory ;
4.If you are interested in our products please feel free to contact
us , we can take you visit our factory !
Welcome to Visit our factory !
