Home > Fuel Tanker Semi Trailer >

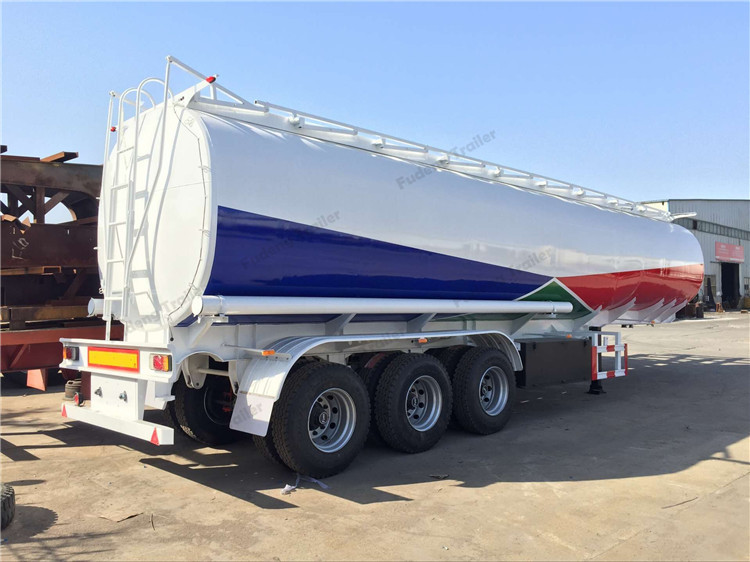

Cabon steel material Fuel Tank Semi Trailer 3 axles 6 cabins Mechanical suspension

Product Categories

Shandong Fudeng Automobile Co, Ltd.

Contact Now

Cabon steel material Fuel Tank Semi Trailer 3 axles 6 cabins Mechanical suspension

Ask Lasest Price
Brand Name :	Fudeng
Model Number :	SDFD17012
Certification :	CE, ISO9001, CCC, ADR, DOT, SGS, etc
Payment Terms :	T/T, L/C or negotiate
Supply Ability :	600 sets per month
Delivery Time :	25-40 days after 30% deposit
Price :	negotiation

Add to Cart

Product Details
Company Profile

Cabon steel material Fuel Tank Semi Trailer 3 axles 6 cabins Mechanical suspension

Custom-built tank trailers by Fudeng can be built according to industry standards to transport crude oil and petro-chemicals to and from your destination. When you use Fudeng products, you can travel with confidence.

1. Fudeng’s custom engineered Petro-Chemical trailers are the lightest on the market.

2. Proven two-piece barrel design with a single circumferential seam.

3. Industries widest sheet material minimizes barrel seams.

4. Designed for ease of operation and simple maintenance.

5. A wide variety of piping, vapor recovery, and pumping options available, including, factory-applied Tnemec Lining.

Fuel tank trailer specification
Tank Body
Dimension	12000mm2490mm3990mm or customized
Volume(m³)	50000 Liters
Tare weight	About 10 ton
Tanker Body thickness	5mm /Q345B carbon steel /aluminum
End Plate thickness	6mm /Q345B carbon steel /aluminum/stainless steel
Manhole Cover	Carbon steel Aluminum alloy API manhole cover, 500mm
Bottom Valve	Aluminum API Pneumatic Bottom Valve
Discharging Valve	Diameter is 3 or 4 inch
Discharging Pipe	4” rubber hose, 2 pcs, 6m/each
Compartments	Optional
Chassis
Main Beams	Q345B carbon steel or T700 high-intensive steel, I Beam height 500mm Upper plate 14mm, lower is 16mm, middle is 8mm
Axle	3 axles, 13T and 16T brake pad American type, FUWA or Chinese brand
Landing Gear	Standard 28T double speed, JOST(D200T) or Chinese brand
King Pin	5.0(2 inch)/9.0(3.5 inch) JOST(D200T) or Chinese brand
Suspension	Mechanical suspension or Air suspension Thicken
Leaf Spring	90mm(W)13mm(T)10 Layer/90mm(W)16mm(T)10 Layer/ 100mm(W)16mm(T)10 Layer
Pneumatic Braking System	6 air chamber, 3 axles synchronization WABCO brand
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be Optional
ABS	Optional
Accessories	One standard tool box
Voltage	24V
Packing and shipping
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms	By Bulk Cargo/RORO

5 cabins fuel tank semi trailer for sale

Cabon steel material Fuel Tank Semi Trailer 3 axles 6 cabins Mechanical suspension
