55 cbm fuel tanker Semi Trailer large capacity carbon steel material price

Custom-built tank trailers by Fudeng can be built according to industry standards to transport crude oil and petro-chemicals to and from your destination. When you use Fudeng products, you can travel with confidence.

1. Fudeng’s custom engineered Petro-Chemical trailers are the lightest on the market.

2. Proven two-piece barrel design with a single circumferential seam.

3. Industries widest sheet material minimizes barrel seams.

4. Designed for ease of operation and simple maintenance.

5. A wide variety of piping, vapor recovery, and pumping options available, including, factory-applied Tnemec Lining.

Fuel tank trailer specification
Tank Body
Dimension	12000mm2490mm3990mm or customized
Volume(m³)	25m³- 70 m³
Tare weight	About 6-12 ton
Tanker Body thickness	5mm /Q345B carbon steel /aluminum
End Plate thickness	6mm /Q345B carbon steel /aluminum/stainless steel
Manhole Cover	Carbon steel Aluminum alloy API manhole cover, 500mm
Bottom Valve	Aluminum API Pneumatic Bottom Valve
Discharging Valve	Diameter is 3 or 4 inch
Discharging Pipe	4” rubber hose, 2 pcs, 6m/each
Compartments	Optional
Chassis
Main Beams	Q345B carbon steel or T700 high-intensive steel, I Beam height 500mm Upper plate 14mm, lower is 16mm, middle is 8mm
Axle	4 axles, 13T and 16T brake pad

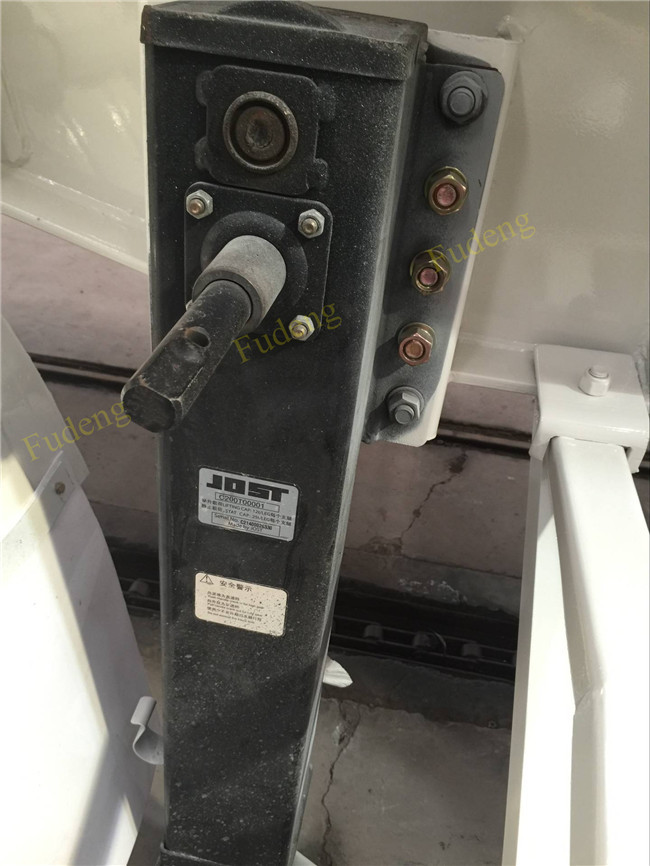

Landing Gear	Standard 28T double speed, JOST(D200T) or Chinese brand
King Pin	5.0(2 inch)/9.0(3.5 inch) JOST(D200T) or Chinese brand
Suspension	Mechanical suspension or Air suspension Thicken
Leaf Spring	90mm(W)13mm(T)10 Layer/90mm(W)16mm(T)10 Layer/ 100mm(W)16mm(T)10 Layer
Pneumatic Braking System	6 air chamber, 3 axles synchronization WABCO brand
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be Optional
ABS	Optional
Accessories	One standard tool box
Voltage	24V

1. Different types of suspension are designed for various operating condition bogie suspension; air suspension; mechanical suspension.

2. We provide Low barycenter, maximum volumetric capacity products.

3. Automatic tire inflation and pressure sensor system is optionally available for enhanced safety and better fuel economy.
