Tri - Axle Flatbed Container Trailer Mechanical Suspension 30-80 Tons Payload

40ft Container Chassis Flatbed Container Trailer 3 Axles flatbed trailers

FUDENG Flatbed container trailer Advantage:

1. 20ft Flatbed Container trailer can use it to carry one 20ft cargo containers at one time and also deliver products like pipe , steel , lumber and any other item you want.

2. High strength frame : Torsion - resistan of Main Longitudinal Beams("I" high strengh steel) and Transverse Beam (channel beam)

3. All the parts of Flatbed Semi Trailer are purchased from famous brand product like Jost Lading Gear, WABOCO emergency brake, BPW Axle.That made Flatbed Semi Trailer more reliable, exhibiting great strength and a long time time of use

4. 40ft Flatbed Container Trailer includes a 3 mm thickness flat platform that is made of checkered plates. Ridges flatbed create more friction, thus making it slip-resistant.
5. Surface treatment: Pretreatment to coating , apply sandblast to the whole structure, zinc-rich primer puls acrylic polyurethane top coating.

6.Delivery time within 15 working days.

Specifications
Dimension	12.5m×2.5m×1.5m (Outside)
Payload	30-80Tons
Tare weight	About 8.5 Tons
Twist lock	4, 8, 12 units or customized
Chassis
Frame	Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam	Upper and lower plate is20mm,middle is10mm.height is 500 mm
Frame Floor	The Thickness is 3mm flat bed
Axle	2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear	JOST (D200T)or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type/air suspension
Leaf Spring	90mm(W)13mm(T)10 Layer/90mm(W)16mm(T)10 Layer/ 100mm(W)16mm(T)10 Layer
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim	8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire	11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
ABS	Optional
Accessories	One standard tool box
Voltage	24V
Packing and shipping
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms	By Bulk Cargo/RORO/40HQ containers

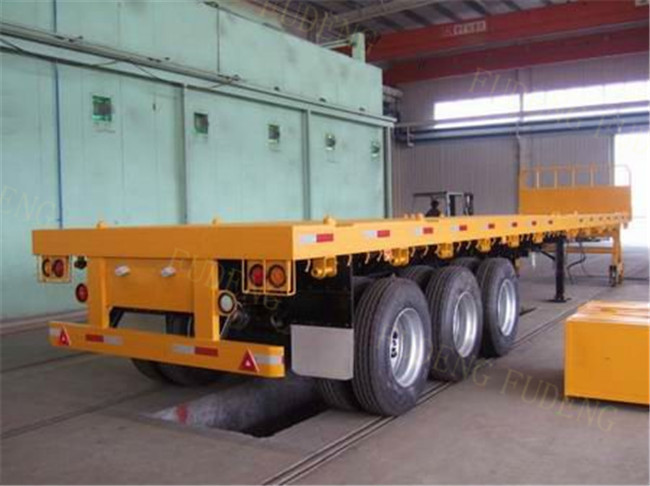

40Tons Flatbed container trailers.

Tri - Axle Flatbed Container Trailer Mechanical Suspension 30-80 Tons Payload

55Tons Flatbed container trailers.

Package&Shipping.

Tri - Axle Flatbed Container Trailer Mechanical Suspension 30-80 Tons Payload

Welcome to visit our factory!
