40 Foot Flatbed Trailer With Strength Chassis Load Capacity 30-80 Tons

4 Axles 40ft flatbed container trailers load capacity 30-80Tons with strength chassis

Flatbed container Trailers 3 or 4 Axle in Truck Trailer , manufactures high quality flatbed trailer from China. In our flatbed trailer we use high quality container locks and steel to make it more strong and sustainable. These trailer can be useage for 20,30,40,45 feet containers. According to demand we can change the technical specificataions of the trailer. These trailes can produce flatbed trailer in different capacities

Flatbed container trailer Feature:

1> Strong trailer frame was made from T700 steel

2> All cross beams are completely reinforced

3> Heavy duty type suspension

4> Good brake effects. Axles are equipped with WABCO emergency brake valve also dual-brake chamb- ers also widen brake pads.

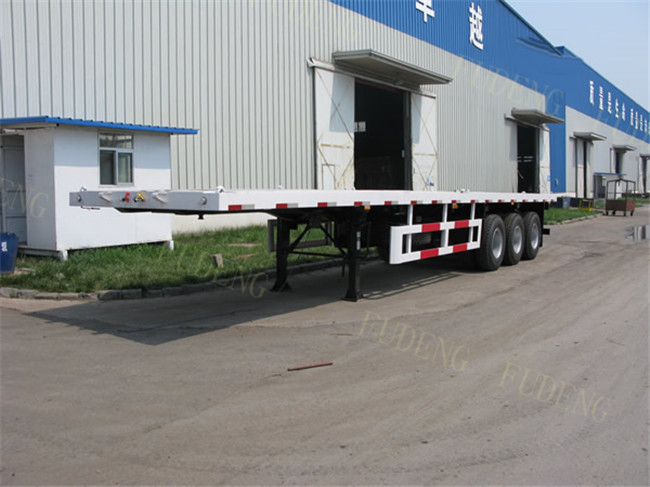

3 AXLE FLATBED CONTAINER TRAILER
DIMENSIONS
Tare weight	7000kg
Size	13000mm2500mm1650mm
Payload	30-80T
Main beam	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm
Side beam	16# channel steel(Q235)
Cross member	10# channel steel(Q235)
Floor	3mm checkered plate
Axle	3 axle FUWA brand 13T
Suspension	Mechanical suspension
Leaf spring	10pcs9013mm
Tire	12R22.5 double star brand 12pcs
Wheel rim	9.0-22.5 better brand 12pcs
Kingpin	2” bolt-in king pin
Landing gear	Heavy duty landing gear 28T
Twist lock	12pcs
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
Light	LED 8 side lights and 2 rear lights 2 width lamp
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories	two standard tool box,one spare tire carrier,one crank,one shaft headwrench,four side light,two rear light
Date of delivery	20 workdays after we received 30% of contract value T/T down payment.

3 Axles 55Tons Flatbed container trailers.

40 Foot Flatbed Trailer With Strength Chassis Load Capacity 30-80 Tons

3 Axles 45Tons Flatbed container trailers.

Package&Shipping.

40 Foot Flatbed Trailer With Strength Chassis Load Capacity 30-80 Tons

Welcome to visit our factory!
