4 Axles 40ft flatbed container trailers load capacity 30-80Tons
with strength chassis
Flatbed container trailer Feature:
1.Max flexibility:12 sets of twist locks,available for
1*40ft,1*20ft or 2*20ft container;
2.Capable of rough road condition:international standard heavy duty
chassis and running system applied to cope with rough road
condition;
3.Light design:high tensile steel material and advanced design to
achieve lower weight with high carrying capacity,reduce operation
cost;
4.Surface treatment:(shot blasting+painting)Zinc-rich-primer and
polyurethane topcoat as customers’ choices.
5.Options: 20ft,40ft,45ft,48ft,2 or 3 axles.bulk head(front wall).
What we can provide you
1. Professional technical support.
2. Reasonable financial suggestion.
3. Economical Transportation planning.
4. Comprehensive after-sale service
| 3 AXLE FLATBED CONTAINER TRAILER |
| DIMENSIONS |
| Tare weight | 7000kg |
| Size | 13000mm*2500mm*1650mm |
| Payload | 60T |
| Main beam | Heavy duty and extra durability designed I beam; opting for high
tensile steel Q345, welded by automatic submerged-Arc processes.
Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom
flange16mm,width 140mm |
| Side beam | 16# channel steel(Q235) |
| Cross member | 10# channel steel(Q235) |
| Floor | 3mm checkered plate |
| Axle | 3 axle FUWA brand 13T |
| Suspension | Mechanical suspension |
| Leaf spring | 10pcs*90*13mm |
| Tire | 12R22.5 double star brand 12pcs |
| Wheel rim | 9.0-22.5 better brand 12pcs |
| Kingpin | 2” bolt-in king pin |
| Landing gear | Heavy duty landing gear 28T |
| Twist lock | 12pcs |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| Light | LED 8 side lights and 2 rear lights 2 width lamp |
| Painting | Complete chassis sand blasting to clean rust ,1coat of
anticorrosive prime,2coats of final paint |
| Accessories | two standard tool box,one spare tire carrier,one crank,one shaft
headwrench,four side light,two rear light |
| Date of delivery | 20 workdays after we received 30% of contract value T/T down
payment. |

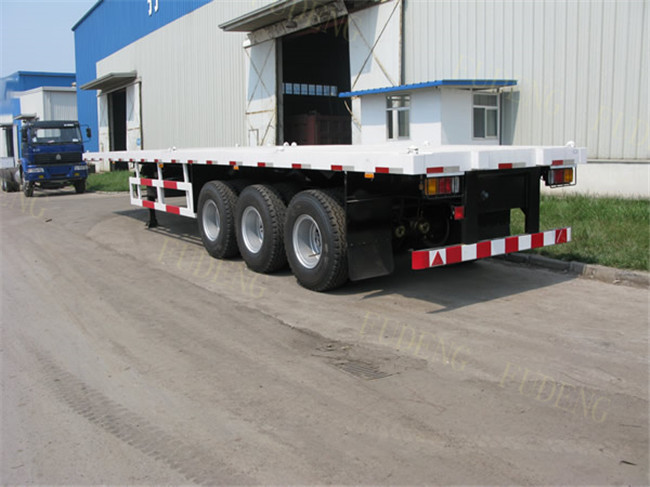

40ft Flatbed container trailers.
We can design
· 20ft, 40ft Flatbed container trailer
· 4, 8, 12 units twistlocks

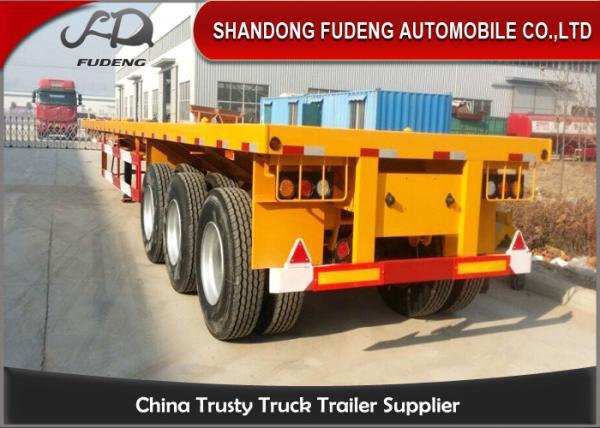

50Tons Flatbed container trailers.
Flatbed container trailers More details.
