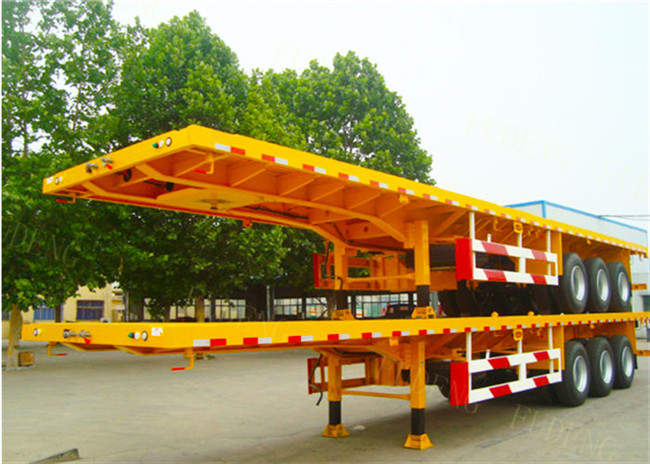

    20 Ft 40 Ft 45 Feet Flatbed Semi Trailer Platform High Bed Trailers For Container Delivery

    Ask Lasest Price
    Brand Name : Fudeng
    Model Number : SDFD1704 Flatbed trailer
    Certification : CE, ISO, CCC, SGS, ADR
    Payment Terms : L/C, T/T or negotiate
    Supply Ability : 600 sets per month
    Delivery Time : 25-40 days after 30% deposit
    Price : negotiation
    • Product Details
    • Company Profile

    20 Ft 40 Ft 45 Feet Flatbed Semi Trailer Platform High Bed Trailers For Container Delivery

    20 ft 40 ft 45 feet flatbed semi trailer platform high bed trailers for container delivery



    Main characters:

    • Frame: The frame is manufacture by a structure, which are made of high strength steel. The main beam is designed reasonably to get a balanced consideration of the intensity, rigidity and toughness, maintaining a low center of gravity, heavy loading mass, not easy to be distorted.
    • Axles: The axle can be selected in different famous brand of BPW, L1, JII and FUWA ect. domestic and overseas. Also, the ABS system can be optional with Haldex and WABCO etc., can be greatly increase the stability and safety.

    Specification of 40ft container flatbed semi truck trailer
    Tare weight
    7000kg
    Payload
    55000kg
    Oversize
    12500x2500x1550mm
    Chassis
    Heavy duty and extra durability designed l beam;opting for high tensile steel Q345,welded by automatic submerged-Arc processes.Top flange 14mm,width 140mm;middle Flange 8mm;bottom flange 16mm,width140mm
    Axle
    3
    Capacity
    13t/16t
    Suspension
    Mechanical suspension Or air suspension
    Leaf spring
    Leaf spring or air bag
    Floor
    Checkered plate
    Tire
    11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
    Wheel rim
    8.5-20,9.0-20,8.25-22.5,9.0-22.5 steel wheel rim optional upon choice
    Kingpin
    2/3.5 bolt-in king pin
    Landing gear
    JOST brand two-speed,manual operation,heavy duty landing gear
    Twist lock
    12 no. of ISO twist lock for 1x20ft,2x20ft,1x40ft container
    Vehicular applications
    Container (20ft,40ft...) transport
    Braking system
    WABCO RE6 relay valve;T30/30 spring brake chamber;40L air tanks.
    Painting
    Complete chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint
    Accessories
    1 standard tool box
    Spare tire carrier
    2 spare tire carrier without spare tires

    Specifications can choose:

    • High Quality Body with side walls
    • BPW, FUWA or Certificated Chinese brand Axles
    • ABS and EBS brake system
    • JOST or Chinese brand parking leg and king pin
    • Air and Mechanical Suspension
    • Strength Chassis Construction
    • Front Axle Lifting
    • Steel or Aluminum Rims

    20 Ft 40 Ft 45 Feet Flatbed Semi Trailer Platform High Bed Trailers For Container Delivery


    20 Ft 40 Ft 45 Feet Flatbed Semi Trailer Platform High Bed Trailers For Container Delivery


    1. We have an experienced and technological team to customize the best products for customers according to the demand strictly.

    2. We will do quality text from the production of each trailer part to the finish of the whole trailer.
