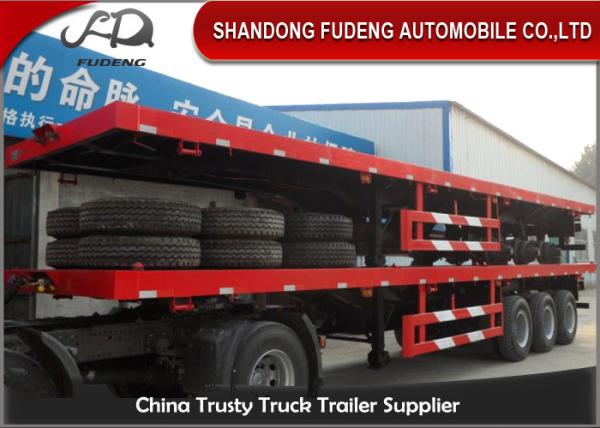

40 Foot High Flat Bed Semi Trailer With 3 Axles For Carry Container
Or Cement Bags
Applications
FUDENG Flate bed semi trailer is mainly used to Carry 40ft
Container, 20 Ft Containers, Hose, Steel Plate, Cement Bags ..Our
flat bed semi trailer are engineered and custom built to meet the
needs of each customer, based on application, regional weight laws,
severity of service, operational efficiency and personal
preferences.
Flatbed semi trailers are another commonly used type of equipment
in the transportation industry.
Flatbed trailers are used to deliver products like pipe, steel,
lumber, heavy equipment, and any other Itemthat would be difficult
to load into the back of a trailer. Flatbeds are more versatile
than dry vans,because they can be loaded from anywhere on the
trailer.
Competitive Advantage
1, Flatbed Semi Trailer can use it to carry one 40 ft cargo
container, two 20 ft containers , or one 20 ft container at one
time.
2, Flatbed Semi Trailer includes a 3 mm thickness flat platform
that is made of checkered plates. Ridges flatbed create more
friction, thus making it slip-resistant.
3, All the parts of Flatbed Semi Trailer are purchased from our
qualified suppliers, That made Flatbed Semi Trailer more reliable,
exhibiting great strength and a long time time of use
4, Strong trailer frame was made from T700 steel
5, The floor is covered with corrugated sheet metal
6, Heavy duty type suspension
Specification
| Dimension | 12450×2500×1550mm( outside dimension,The exact size depends on the
final design.) |
| Loading Capacity | less than 60 tons |
| Bottom Plate | Thickness: 3mm checkered plate /Q235 steel |
| Axle | 13 T/16T, FUWA /BPW /Huajing Brand two or three axles |
| Rim | 9.00-22.5, 13pcs |
| Tire | 12.00R22.5/ 315 80R22.5, 13pcs |
| Suspension | Mechanical suspension (German or American type) or air suspension
(Chinese brand or BPW brand ) |
| Spring leaf | 90(W)mm×13(Thickness)mm×10 layers or 100mm×12mm×12 layers |
| King pin | JOST brand 2.0 or 3.5inch (bolted or welded type) |
| Support leg | JOST brand C200T or Chinese brand 28Tons (Double speed) |
| Main beam | Height: 500mm Top plate: 14mm Middle Plate: 8mm; Bottom Plate is
16mm; Material: Q345B Steel |
| Side beam | 16mm or 18mm steel channel (Material: Q235steel ). |
| Brake chamber | WABCO RE 6 relay valve; |
| Twist lock | 4, 8, or 12 sets (lifting or screw Type) |
| ABS | Optional |
| Valve | WABCO valve |
| Light | LED light (specially intended for oversea market ) |
| Voltage | 24V |
| Tool box | 1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon
sleeve and 1 cranking bar.
Its size can be tailored to suit your needs.) |
| Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of
anticorrosive primer and
2 layers of top coats. |
| Shipping Terms | By bulk cargo carrier, RORO or 40HQ container. |
