    40 Foot / 20 Foot Flatbed Container Trailer With Tool Box Four BPW / FUWA Axles

    Ask Lasest Price
    Brand Name : Fudeng
    Model Number : FDZH040714
    Certification : ISO/CCC/SGS
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 300 sets per month
    Delivery Time : 20 - 25 work days after 30% deposit
    Price : negotiation
    • Product Details
    • Company Profile

    40 Foot / 20 Foot Flatbed Container Trailer With Tool Box Four BPW / FUWA Axles

    20ft 40ft Flat Bed Semi Trailer , 4 axles container flatbed trailer with tool box


    Advantages


    1> Strong trailer frame was made from T700 steel

    2> All cross beams are completely reinforced

    3> Heavy duty type suspension

    4> Good brake effects. Axles are equipped with WABCO emergency brake valve also dual-brake chamb-

    ers also widen brake pads


    Specification


    Specifications
    Dimension12.5m×2.5m×1.55m (Outside)
    Payload30-80T
    Tare weightAbout 8.5T
    Twist lock12 units
    Chassis
    Main beamWelding design “I” beam, Q345B carbon steel material
    Frame BeamUpper plate is 14mm,lower plate 16mm, middle plate is 8 mm. height is 500 mm
    Frame FloorThe Thickness is 3mm pattern
    Edge beam16# Channel
    Through beam10#Channel
    Along beam6#Channelx6
    Axle4 axles
    Landing Gear28T
    King Pin2.00 or 3.5 inch bolt-in king pin
    SuspensionMechanical suspension
    Leaf Spring90mm(W)*16mm(T)*10 Layer
    Braking System8 big air chamber, 4 axles synchronization valve
    Rim8.5-20*16
    Tire12R22.5*16
    AccessoriesOne standard tool box
    Spare tire rackTwo
    Voltage24V
    Packing and shipping
    PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
    Shipping TermsBy Bulk Cargo/RORO/45HQ container

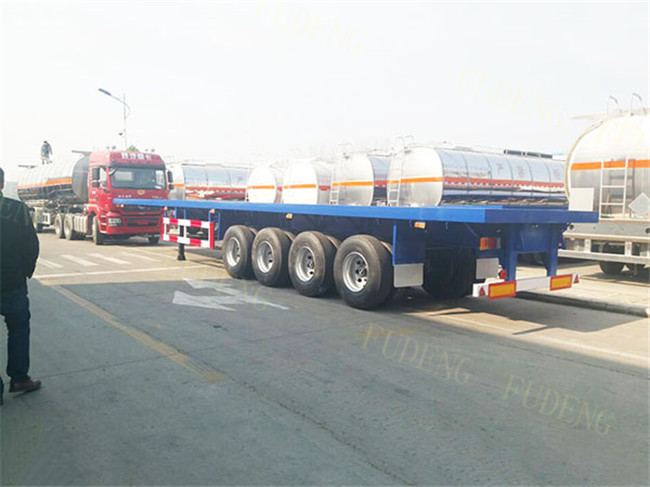

    4 axle flatbed container semi trailer

    40 Foot / 20 Foot Flatbed Container Trailer With Tool Box Four BPW / FUWA Axles
    Flatbed semi trailer with tool box
    40 Foot / 20 Foot Flatbed Container Trailer With Tool Box Four BPW / FUWA Axles
    3 axle flatbed container semi trailer
    40 Foot / 20 Foot Flatbed Container Trailer With Tool Box Four BPW / FUWA Axles


    Besides, we can provide spare parts for customers with factory price and our spare parts are easy to buy in all world. Because our trucks are sold in most countries.
