FUWA Axle Steel 40ft Chassis Container Trailer Mechanical Suspension

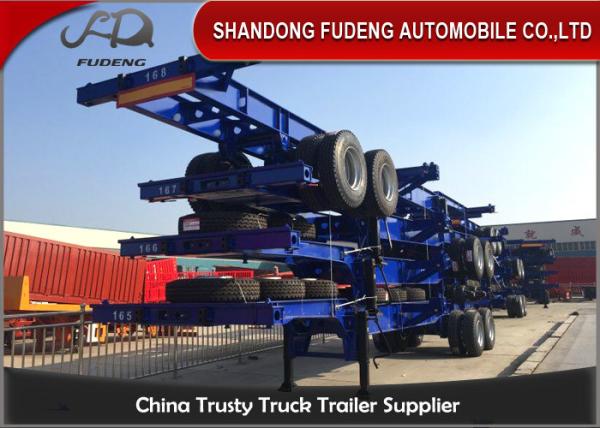

Fuwa brand axle 40 ft chassis Skeletal trailer with Mechanical Suspension

With over 30 years experience in the design and building of container chassis, you can depend us to help you find the best solution for your application. Whether its standard, high payload or custom chassis, expect to receive the expert advice and personal service that you deserve no matter how big or small your need might be. And if new is not what you are looking for, we can offer used chassis too. Just check our Listing or contact us to check for availability!

FUWA Axle Steel 40ft Chassis Container Trailer Mechanical Suspension

1. We use high-intensive steel to achieve high capacity but low weight.

2. Both the skeleton and the twistlock is designed as inside and outside strengthening.

Chassis trailer specification
Frame	Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam	Upper and lower plate is20mm,middle is10mm.height is 500 mm
Frame Floor	The Thickness is 3-8 mm flat bed
Axle	2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear	JOST (D200T)or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type/air suspension
Leaf Spring	90mm(W)13mm(T)10 Layer/90mm(W)16mm(T)10 Layer/ 100mm(W)16mm(T)10 Layer
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim	8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire	11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
ABS	Optional
Accessories	One standard tool box
Voltage	24V

FUWA Axle Steel 40ft Chassis Container Trailer Mechanical Suspension
