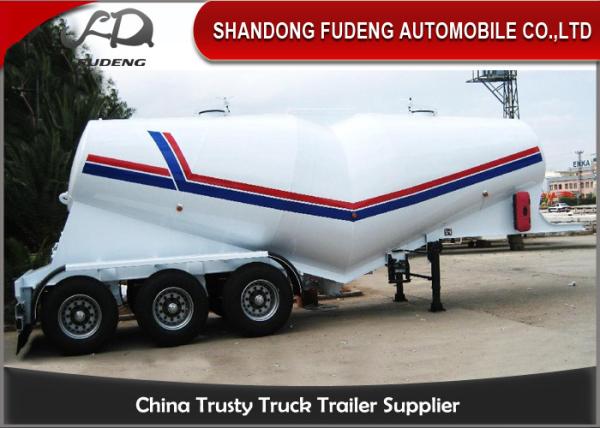

55cbm 3 Axle Dry Bulk Cement Truck Powder Transport Tanker Semi
Trailer for Uganda
Features of Bulk Cement Tanker Trailer:
1. Steel structure: Steel frames are built with top-class hot
rolled or rolled steel plate, automatic welded longitudinal beam
and adopting advanced sanding and painting process as preliminary
treatment.
2. Different types of suspension are designed for various operating
condition: Bogie suspension; Air suspension; Mechanical suspension.
3. Lamp assembly uses advanced LED light, top quality PC and cast
wire harness in dual circuit design.
4. Fluidized bed design is reasonable, the air compressor and the
perfect match of tank; Residual rate is low, safety performance is
high, easy to operate; Good performance of simple structure,
convenient maintenance, vulcanization.
5.Working pressure 0.2Mpa, Discharge speed 1.2-1.5t/mm, Residual
rate≤2‰,Discharge height≥25m.
Bulk Cement Tank Trailer Application:
1. For dry powder transporting, such as bulk cement, flour, and so
on.
2. Volume is optional.
3. High-tensile steel with strong load capacity.
4. Air compressor and diesel engine are equipped.
5. Can be designed according customer's requirement
Specification:
| Assembly Name | Composition | Specifications |
| Chassis | Main beam | Q345Steel;The height of the beam is 500mm; Middle plate is 8mm;Down plate is 16mm. |
| King Pin | 2”or 3.5”traction pin |
| Dimensions(L*W*H) | 11980*2500*3800mm |
| Tank body | Tank body &end plate | Q235/5mm steel &6mm steel sheet r |
| Manhole cover | 500mm manhole cover.2 sets with 2 breather valve |
| Discharge valve &pipe | 4” disc valve&4” seamless steel tube |
| Bottom valve | 1-2 sets of aluminum API pneumatic bottom valve |
| Suspension | Suspension type | Common mechanical(Option Air Suspension |
| Steel Spring | 10/10/10 |
| Running system | Axle | 3 axle Fuwa/BPW/Chinese Brand |
| Wheel Rim | 9.0-22.5 steel wheel rim |
| Tire | Spe:12R22.5; Number of Tire:8 pieces |
| Brake system | Brake Chamber | 6 big chamber |
| Brake Valve | KTL Brand/WABCO |
| Brake system | Dual Line Brake system |
| Other | Tool box | 1 set standard tool box |
| Light | Tail lamp with turn signal ,brake light & reflector, side lamp etc. |
| Painting | 1 coat of anticorrosive prime, twice coats of final paint. |
| Spare Tire Carriers | 2 pieces |
| Leading gear | 28T Manual operating, Heavy duty landing gear |
| Weight | Tare Weight | 9000Kg |
| Loading Capacity | 42000 liters |
| Axle weight load | 13T/12T |
30CBM Bulk cement tanker trailers.
35Tons Bulk cement tanker trailers.

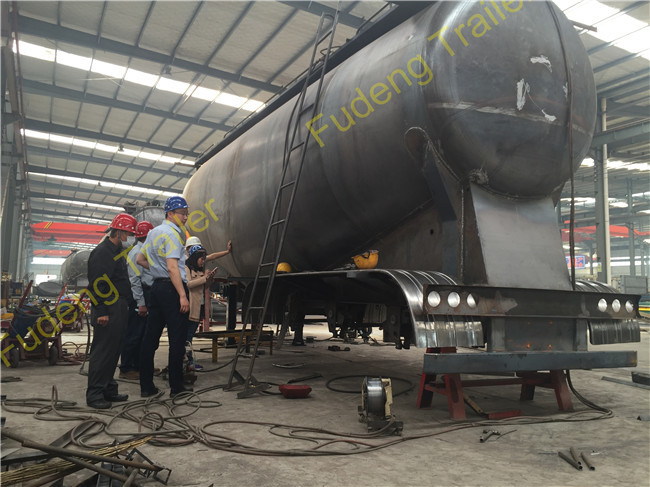

Factory Overview.
