3 axles Dry Bulk Trailer Powder Cement Tanker Semi Trailer With
25ton-40ton
FUDENG brand Bulk cement tanker semi-trailer is a dedicated vehicle
for large quantities of dust material (bulk cement)
transport suitable for fly ash, cement, lime powder, mineral powder
particle diameter of not more than 0.1mm powder drying and pneumatic transport of material discharge
material, when unloading the vertical height of 15m, but also the level of transmission distance of 5m.
Our Products Description:
1.We have well experienced in reseaching and developing different
trailers:container trailer, low bed trailer, side wall semi trailer, stake semi trailer, tank trailer and heavy duty trailer
etc.
2.High tensile strength steel Q345B for I-beam,Q235B for tank body
3.Axle:German or American style from 12 tons to 20 tons
4.Suspension:Mechanical suspension, air suspension or bogie
suspension.
5.Tyre:11.00R20, 11R22.5, 12.00R20 or 12R22.5 (Other size is
optional)
6.King pin:Optional for 2" or 3.5" Kingpin
7.Volume:From 35,000 Liters to 60,000 Liters
8.Landing Gear:"Jost" landing gear
Specification:
| Dimensions | 10900mm*2500mm*4000mm |
| Loading | 40T, 45T, 50T, 60T,70T,80T,
27cbm,32cbm,40cbm,45cbm,50cbm,55cbm,60cbm,70cbm |
| Tire | 11.00R20, 12.00R20,12R22.5, 385/65R22.5 Triangle/Hankook/
Bridgestone brand |
| Compartments | 1 compartment(According to customers' requirments) |
| Diesel Engine | Original WEICHAI Poer Model:4102 |
| Air Compressor | BOHAI Brand 12M3 double cylinder |
| Axles | 13T/16/20T BPW or FUWA brand |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | WABCO Valve with big chamber |
| LandingGears | JOST brand two-speed, Manual operating heavy duty 28ton |
| Suspension | Bogie suspension, spring suspension, Air suspension |
| Tank body | Q345B/6mm steel sheet, shape: V type,W type(Carbon steel, Aluminum
alloy,Stainless steel Optional) |
| ElectricalSystem | 24v, 7core socket, lights according to European standards (suitable
for africa market) |
| Painting | Complete chassis sand blasting to clean ryst, 1coat of
anticorrosive prime,2coats final paint |
| Other parts | 1 tool boxs, 1 spare tire carrier |
| Functions | Transport bulk cement and powder and flour |

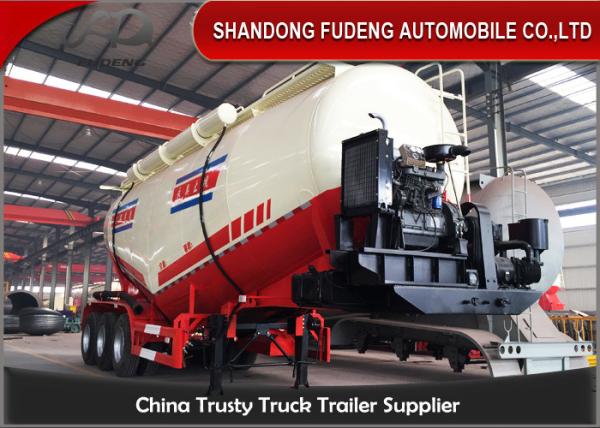

35CBM Bulk cement tanker trailers.
40Tons Bulk cement tanker trailers.
