Tri Axles Chassis Container Trailer For 40ft Container Transportation

Product Categories

Shandong Fudeng Automobile Co, Ltd.

Contact Now

Tri Axles Chassis Container Trailer For 40ft Container Transportation

Ask Lasest Price
Brand Name :	Fudeng
Model Number :	SDFD1705 chassis trailer
Certification :	CE, ISO, CCC, SGS, ADR
Payment Terms :	L/C, T/T or negotiate
Supply Ability :	600 sets per month
Delivery Time :	25-40 days after 30% deposit
Price :	negotiation

Add to Cart

Product Details
Company Profile

Tri Axles Chassis Container Trailer For 40ft Container Transportation

Tri axles 40ft container transport skeleton chassis semi trailer for sale

Fudeng chassis are built tough to be damage-resistant, low-maintenance and loader-friendly. Choose from a full line of quality container chassis spec'd with durability and versatility in mind.

Chassis trailer specification
Dimension	12.5m×2.5m×1.5m (Outside)
Payload	35T-75T
Tare weight	About 4.5T--8.5T
Twistlock	4, 8, 12 units or customized
Chassis
Frame	Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam	Upper and lower plate is20mm,middle is10mm.height is 500 mm
Frame Floor	The Thickness is 3-8 mm flat bed
Axle	2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear	JOST (D200T)or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type/air suspension
Leaf Spring	90mm(W)13mm(T)10 Layer/90mm(W)16mm(T)10 Layer/ 100mm(W)16mm(T)10 Layer
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim	8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire	11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
ABS	Optional
Accessories	One standard tool box
Voltage	24V
Packing and shipping
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms	By Bulk Cargo/RORO/40HQ container

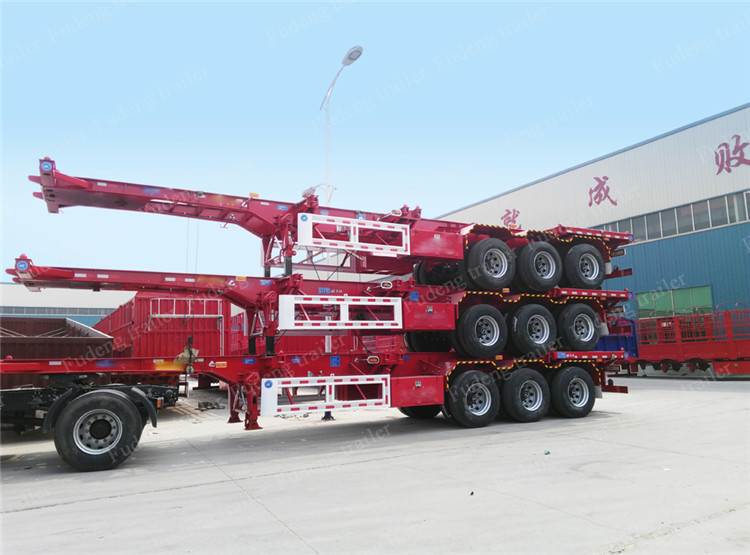

3 axles chassis trailer

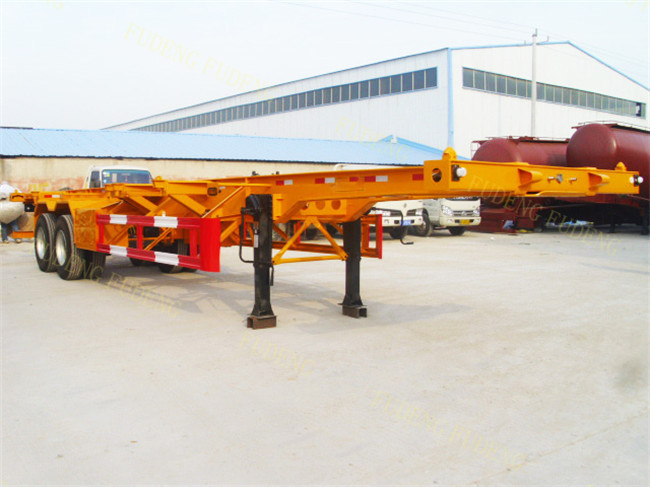

2 axles chassis trailer
