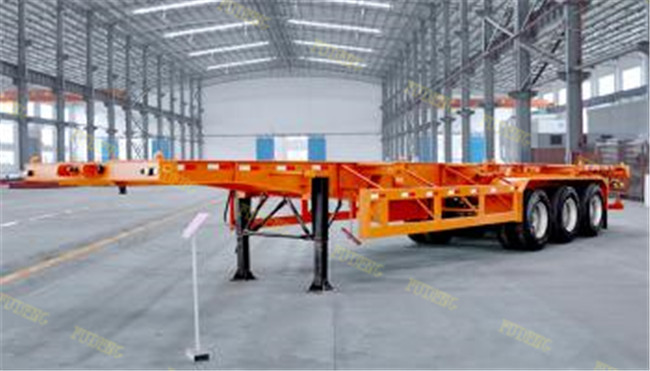

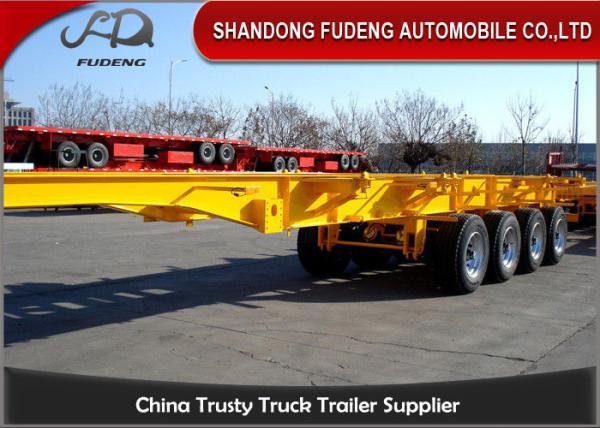

2 axle 3 axle 40Tons Skeleton Semi Trailer 20ft 40ft container
chassis trailer
Chassis container trailers servies:
1). Traning of trailer operating and normal maintenance .
2). Regularly callback to know the vehicle's working status.
3). Supply the service of regular repair.
4). Solve the customer’s advisory.
5). The overseas engineers are always ready to deal with unexpected
needs.
6). 24 hours hotline.
7). CKD and SKD are available.
8). Faster, better and more professional
FUDENG optional: 40ft skeleton container trailer, 20ft skeleton container semi trailer, 40ft Extendable skeleton
chassis trailer, 4 axle chassis container trailer, , skeletal
container trailer,12.5m container truck trailer, Skeletal cng tube
tank trailer, Chemical tank skeletal container truck and
trailer,etc.
Specification:
| DIMENSIONS |
| Length | 12,500mm |
| Over Width | 2,500mm |
| Over Height | 1,550mm |
| Steel Structure: |
| Material: | High tensile low alloy, 700,Q345B |
Height of main
beam: | 500mm |
| Top flange thickness: | 14mm |
| Web plate thickness: | 8mm |
| Bottom flange thickness: | 16mm |
| OEM Parts Configuration: | |
| King-pin: | 90mm or 50mm |
| Axle: | Fuwa, 3*13ton |
| Tire: | 1100R20-16, 12pcs |
| Rim: | 8.0 12pcs |
| Brake chamber: | Type 30/30 on All Axles |
| Leaf spring: | 10/10/10 |
| Landing gear: | JOST Brand C200 |
| Container locks: | 12 sets |
| Electrical system: | Chinese standard 24V; 7 ways receptacle; LED lamps |
| Colour and Marking: | Comply with the customer’s requirement |
| Accessory: | |
| Tool box: | 1pcs |
| Spare tire carrier: | 2 pcs |
Container chassis trailers models.
40Tons Chassis container trailers.
Package&Shipping:
Welcome you to visit our factory !
1.We can pick up you in the airport port ‑,
2 book the hotel for you,
3. show around the workshop and production line.
4. We can supply the truck parts.
5. We can supply the stock trucks if you need the trucks urgently.
