Excavator Transport Low Bed Trailer Truck 3 X 13 Ton Axle Mechanical Suspension

    Buy cheap Excavator Transport Low Bed Trailer Truck 3 X 13 Ton Axle Mechanical Suspension from wholesalers

    Buy cheap Excavator Transport Low Bed Trailer Truck 3 X 13 Ton Axle Mechanical Suspension from wholesalers
    • Buy cheap Excavator Transport Low Bed Trailer Truck 3 X 13 Ton Axle Mechanical Suspension from wholesalers
    • Buy cheap Excavator Transport Low Bed Trailer Truck 3 X 13 Ton Axle Mechanical Suspension from wholesalers

    Excavator Transport Low Bed Trailer Truck 3 X 13 Ton Axle Mechanical Suspension

    Ask Lasest Price
    Brand Name : FUDENG Brand Low bed trailer
    Model Number : Low bed trailer
    Certification : CE , ISO,ADR/DOT
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Units Per Month
    Delivery Time : 20days after deposit
    Price : negotiation
    • Product Details
    • Company Profile

    Excavator Transport Low Bed Trailer Truck 3 X 13 Ton Axle Mechanical Suspension

    Tri Axle 40 Ton Low Loader Trailer Low Boy excavator transportation Semi Trailer


    FUDENG Low bed trailers:

    1.We have well experienced in reseaching and developing different trailers:container trailer, low bed trailer, side wall semi

    trailer, stake semi trailer, tank trailer and heavy duty trailer etc.

    2.High tensile strength steel Q345B for I-beam

    3.Axle:German or American style from 12 tons to 20 tons

    4.Suspension:Mechanical suspension, air suspension or bogie suspension.

    5.Tyre:10.00R20, 10R22.5, 11.00R20, 11R22.5, 12.00R20 or 12R22.5 (Other size is optional)

    6.King pin:Optional for 2" or 3.5" Kingpin


    Features:

    1) Reinforced main beam and side beam to ensure high loading.
    2) Adopting best brand FUWABPW axle, Triangle tyres
    3) Optional working platform to fit your machines.
    4) Running in a off road and bad road.


    LOW BED TRAILER Specification:

    DIMENSIONS
    Tare Weight7800kg
    Payload32200kg
    Total Weight40000kg
    Dimension13000*2495*1750mm Or Customized
    Body10830*2300*600
    Wheel Track1840/1840/1840mm
    Wheelbase5700mm+1310mm+1310 mm
    Axle Weight24000(three axle combined)
    STANDARD SPECIFICATION
    Main Frame

    Heavy duty and extra durability designed;Opting for high tensile steel Q345B

    welded by automatic Submerged-Arc processes 480mm Height I beam.

    Top Flange 16mm,width 140mm;Middle Flange 8mm;Bottom Flange 16mm,width

    140mm

    FloorSteel Sheet 3mm thickness
    AxleThree Units of FUWA(brand) 13Ton axle
    SuspensionA Couple of FUWA(brand) mechanical Tri-axle suspension
    Leaf Spring/8/8/8,-/10/10/10
    King PinOne unit of 2 SAE standard welded kingpin
    Landing GearTwo-speed,manual operation,heavy duty landing gear
    Wheel RimTwelve units of 8.25R22.5 rim
    TyreTwelve units of 11.00-2012PR 11.00R2012PR 12R22.512PR tubeless tyre
    Twist Lock

    Twelve nos in total-four nos are fasten mode,four nos are up/down mode,of ISO

    standard twist lock for 2×20ft;1×40ft container,the central locks can be laid down.

    Spare Wheel CarrierOne set of spare wheel carrier including a riser.
    Pneumatic Braking System

    A system with emergency brake and parking brake;

    Dual line-air brake, piggy back spring on all axles;

    Two unit of WABCO RE 6 relay valve;Four units of T30/30 spring brake chamber;

    Two units of T30 brake chamber,Two unit of 40L air tank;Two units of standard

    copper air-connector.

    Electrical System

    One unit of JAEGER POWAY,24V 7-pin ISO 1185 standard socket;Tail lamp with turn signal,brake light & reflector,

    Side lamp etc.One set of 6-core standard Cable.

    Painting

    Sand blasting processing on rust–proof protection

    One coat of anticorrosive primer

    two coats of finish urethane paint

    Color as customer choice

    AccessoryOne box with a set of standard trailer tool

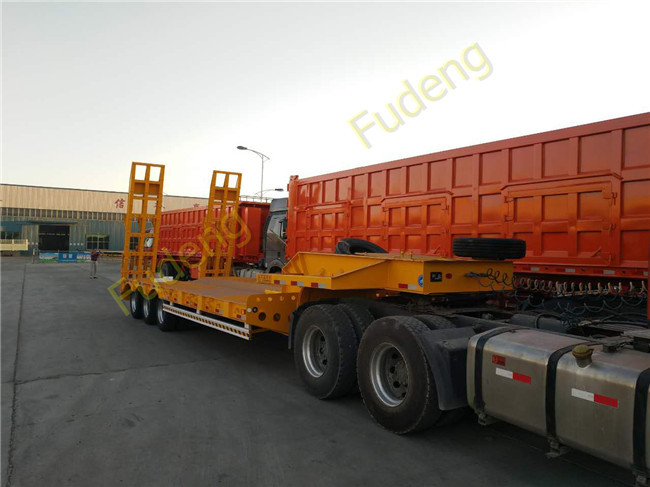

    Tri-Axles low bed semi trailers.

    Excavator Transport Low Bed Trailer Truck 3 X 13 Ton Axle Mechanical Suspension


    40Tons Low bed semi trailers

    Excavator Transport Low Bed Trailer Truck 3 X 13 Ton Axle Mechanical Suspension


    Factory Overview.

    Excavator Transport Low Bed Trailer Truck 3 X 13 Ton Axle Mechanical Suspension


    Welcome to visit our factory.
