Three Axles Drop Bed Low Bed Semi Trailer For Large Contruction Machinery

Tri Axle 40 Ton Low Loader Trailer Low Boy excavator transportation Semi Trailer

Low Bed Trailer which is knows also low loader and can carry heavy loads , excavators , construction machines, transformer, generator , cranes , caravans , army tanks and different kind of big machines. Lowbed Semi Trailers can be produced between 2 axles to 8 axles and loading capacity starting from 20 Tons to 180 Tons , rear or front loading Lowbed Trailers and platform as customer demand with different kind of specification according to demand.

Low Bed Trailers Features:

1) Reinforced main beam and side beam to ensure high loading.
2) Adopting best brand FUWABPW axle, Triangle tyres
3) Optional working platform to fit your machines.
4) Running in a off road and bad road.

LOW BED TRAILER Specification:

DIMENSIONS
Tare Weight	7800kg
Payload	32200kg
Total Weight	40000kg
Dimension	1300024951750mm Or customized
Body	108302300600
Wheel Track	1840/1840/1840mm
Wheelbase	5700mm+1310mm+1310 mm
Axle Weight	24000(three axle combined)
STANDARD SPECIFICATION
Main Frame	Heavy duty and extra durability designed;Opting for high tensile steel Q345B welded by automatic Submerged-Arc processes 480mm Height I beam. Top Flange 16mm,width 140mm;Middle Flange 8mm;Bottom Flange 16mm,width 140mm
Floor	Steel Sheet 3mm thickness
Axle	Three Units of FUWA(brand) 13Ton axle
Suspension	A Couple of FUWA(brand) mechanical Tri-axle suspension
Leaf Spring	/8/8/8,-/10/10/10
King Pin	One unit of 2 SAE standard welded kingpin
Landing Gear	Two-speed,manual operation,heavy duty landing gear
Wheel Rim	Twelve units of 8.25R22.5 rim
Tyre	Twelve units of 11.00-2012PR 11.00R2012PR 12R22.512PR tubeless tyre
Twist Lock	Twelve nos in total-four nos are fasten mode,four nos are up/down mode,of ISO standard twist lock for 2×20ft;1×40ft container,the central locks can be laid down.
Spare Wheel Carrier	One set of spare wheel carrier including a riser.
Pneumatic Braking System	A system with emergency brake and parking brake; Dual line-air brake, piggy back spring on all axles; Two unit of WABCO RE 6 relay valve;Four units of T30/30 spring brake chamber; Two units of T30 brake chamber,Two unit of 40L air tank;Two units of standard copper air-connector.
Electrical System	One unit of JAEGER POWAY,24V 7-pin ISO 1185 standard socket;Tail lamp with turn signal,brake light & reflector, Side lamp etc.One set of 6-core standard Cable.
Painting	Sand blasting processing on rust–proof protection One coat of anticorrosive primer two coats of finish urethane paint Color as customer choice
Accessory	One box with a set of standard trailer tool

Tri-Axles low bed semi trailers.

Three Axles Drop Bed Low Bed Semi Trailer For Large Contruction Machinery

40Tons Low bed semi trailers

Three Axles Drop Bed Low Bed Semi Trailer For Large Contruction Machinery

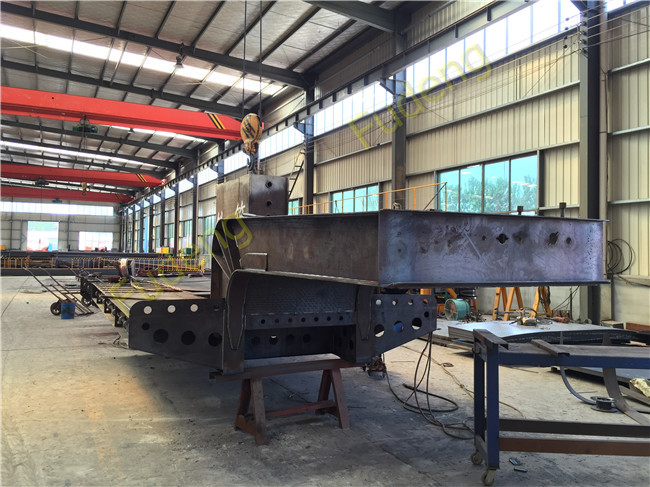

Factory Overview.

Three Axles Drop Bed Low Bed Semi Trailer For Large Contruction Machinery

Welcome to visit our factory.
