    Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer

    Ask Lasest Price
    Brand Name : FUDENG Brand Low bed trailer
    Model Number : SDFDZH040840
    Certification : ISO , SGS , CE , CCC
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 900 Units Per Month
    Delivery Time : 20 - 30 work work days after deposit
    Price : negotiation
    • Product Details
    • Company Profile

    Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer

    Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer

    The loader with spring can easily lift up and lay down . Just one person can deal with ladder. It's much convient for the transporting work . And for this ladder is welding together by the high strength steel , it' much stronger than the normal type which will make sure the safety of the loading .


    The high strength steel made main beam will make sure of the safety of the transport also both the semi trailer together with the machine wich will be transported .


    Specification


    Specification
    Body
    Dimension13.5m×3.0mx1.6m
    Payload80T
    Tare weightAbout 10T
    Bottom Platform4 mm Checkered Thickness

    Main beam


    Welding design I beam, connected by bolts and nuts, Q345B carbon steel material. Upper plate is 18mm,lower plate is 20mm, middle plate is 10mm. height of main beam is 500 mm
    Side beamWelding design I beam. Height is 200mm.
    Through beam14# Channel
    LadderMechanical
    SuspensionAir Suspension
    Chassis
    Axle3 axles, 13 T
    Landing Gear28T Linkage style
    King Pin2.00 or 3.5 inch bolt-in king pin
    Pneumatic Braking System6 big air chamber, 3 axles synchronization valve
    Rim8.5-20*12pcs
    Tyre12.00R22.5 or 11.00R20*12pcs
    AccessoriesOne standard tool box
    Spare tire rackOne
    Voltage24V
    Packing and shipping
    PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
    Shipping TermsBy Bulk Cargo/RORO

    For the transportation of this low loader transport trailer , we have verious options . For examply , the normal transportation type is the bulk cargo or RORO which will be beter for the sea transport , but it will be much higher.

    If the customer accept , we can cut the head of the trailers and then charge it into the flat rack . Also we can arrage another type of the low bed trailer to char into the container , which means that the lowbed trailer will be a little smaller but we can promise that the trailer is in a good condition and use normally .

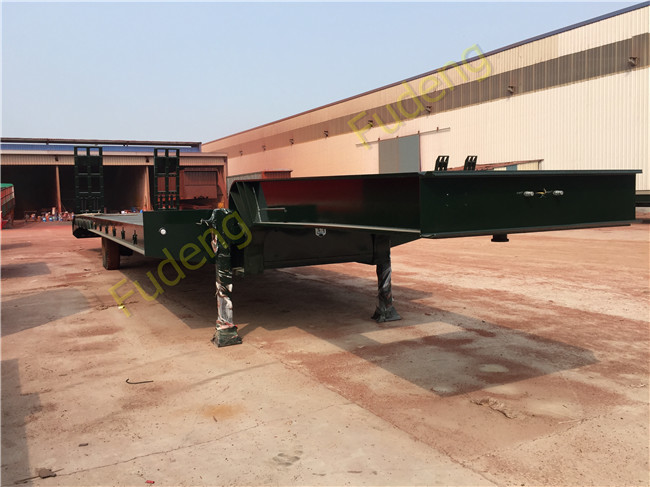

    Details - - 4 axle 80 ton low bed semi trailer


    Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer


    Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer

    Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer

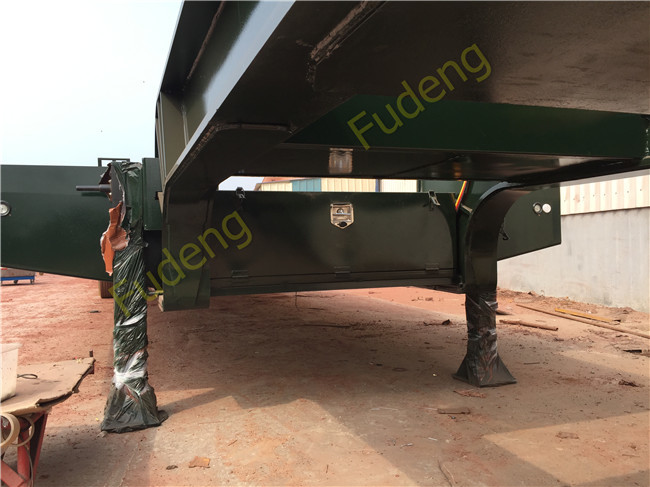

    Details - - 3 axle 80 ton low bed semi trailer


    Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer


    Low Bed Trailer , 3 axles 80T lowbed trailer , 4 axles 80T lowbed trailer
