    Multi-axle hydraulic Low Bed Trailers detachable gooseneck lowboy semi trailer 100 ton

    Ask Lasest Price
    Brand Name : FUDENG Brand Low bed trailer
    Model Number : Low bed trailer
    Certification : CE , ISO,ADR/DOT
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Units Per Month
    Delivery Time : 20 days after deposit
    Price : negotiation
    • Product Details
    • Company Profile

    Multi-axle hydraulic Low Bed Trailers detachable gooseneck lowboy semi trailer 100 ton

    Multi-axle hydraulic Low Bed Trailers detachable gooseneck lowboy semi trailer 100 ton


    Features of Low Bed Trailer:

    Mechanical or hydraulic climbing ramp is an option for easy loading and unloading
    Lower height (hydraulic and air suspension be able to adjust height)
    Detachable gooseneck is an option
    Small turning radius, up to 55° steering angle
    Both automatically and manually all wheels steering
    Drop deck minimize trailer’s platform height, increase traffic ability for over height cargo
    Side bracket is an option(for increase overall width), removable and swinging


    LOW BED TRAILER Specification:

    General
    Overall Dimension13000mm*3000mm*1650mm(Dimensions can be designed)
    Total Weight9500kgPay Load100 ton
    King Pin Setting1120mmRear Overhang1690mm
    Track1840mmWheel base7080mm+1305mm+1305mm
    Running Gear
    Suspension

    Tri-axle 10-pcs leaf spring suspension with equalizer beam

    (Air suspension)

    Tires10.00R20/8.25R20/1100R20, 12units
    AxlesFUWA axle, 13T capacity(BPW,YORK,SAF optional)
    Brakes

    Dual lines pneumatic brake system, WABCO Emergency

    Relay Valve; T30/30+T30 air chamber; parking brake

    Under Frame
    Main Beam

    Q345B steel,I shape, Mild Alloy (16Mn) by Automatic

    submerged arc welding.

    Height 550, upper 20mm, lower 20mm. Mid web 12mm

    Side beam: 250mm I type beam

    Cross BeamMild Alloy Q235
    King PinSize: 50# (2'') or 90#(3.5’’); Type: welded or assembled
    Landing Gear

    Single side operation or double side operation,

    Static capacity 28Ton

    Appendix1 tool box, length 1.0m
    Electrical & Paint
    Electrical

    Rear light, rear reflector, turn indicative light, side reflector,

    fog lamp, number plate light

    Lights & Reflectors24V, 7 lines
    WiringISO standard air connector, 24V 7 pin plug socket
    Air/Elec. ConnectorColor upon request
    PaintAccording to your requirements

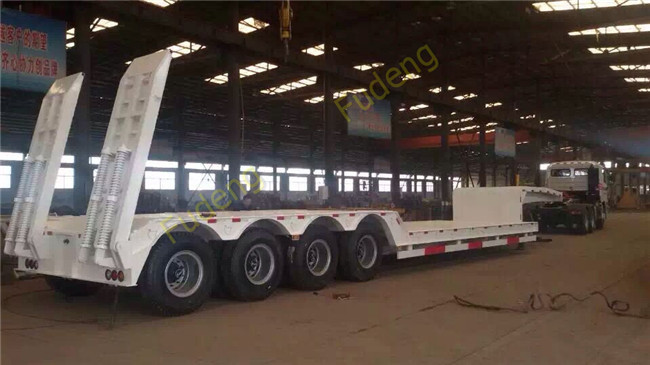

    4 Axles Low bed trailers.

    Multi-axle hydraulic Low Bed Trailers detachable gooseneck lowboy semi trailer 100 ton


    Multi-axle hydraulic Low Bed Trailers detachable gooseneck lowboy semi trailer 100 ton

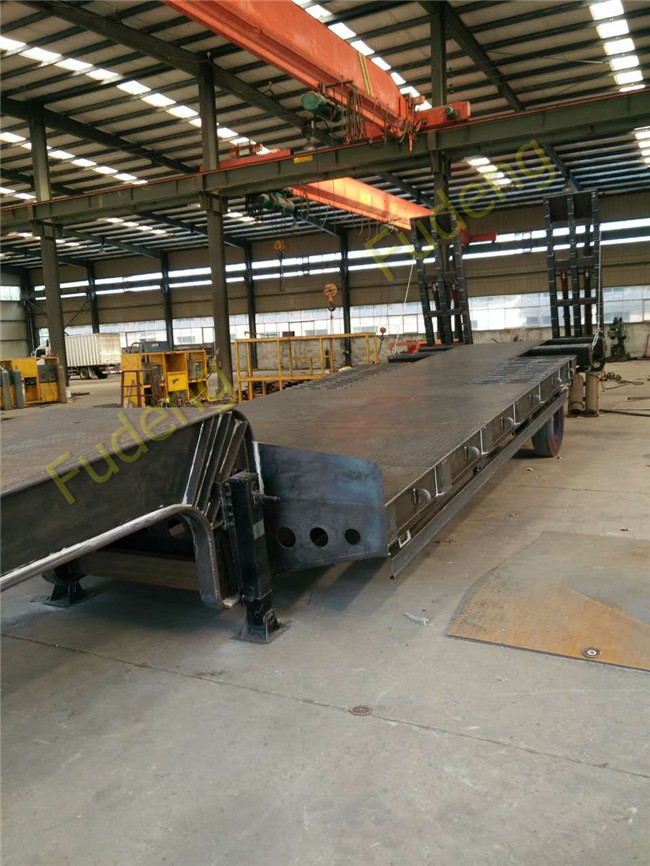

    Factory Overview.

    Multi-axle hydraulic Low Bed Trailers detachable gooseneck lowboy semi trailer 100 ton


    Welcome to visit our factory.
