tri-axle hydraulic low bed semi trailer dimentions with load
capacity 60 tons
1. The hydraulic low bed trailer use through-going beam structure, has frame structure with flat
type and goosen neck type, also
has high integral strength, small weight, beautiful appearance,
safe and reliable operation.
2. The tri axle low bed semi trailer use advanced manufacture technology, makes automatic submerged-arc
welding for vertical
beam, use shot blasting treatment for intergral frame, removes
welding stress effectively.
Lowbed trailers After-Sales Service:
1). Traning of trailer operating and normal maintenance .
2). Regularly callback to know the vehicle's working status.
3). Supply the service of regular repair.
4). Solve the customer’s advisory.
5). The overseas engineers are always ready to deal with unexpected
needs.
6). 24 hours hotline.
7). CKD and SKD are available.
8). Faster, better and more professional.
LOW BED TRAILER Specification:
| 3 axles low bed semi trailers |
| DIMENSIONS |
| Tare weight | 10000kg |
| Size | 13000mm*2500mm*1250mm |
| Payload | 60T |
| Main beam | Heavy duty and extra durability designed I beam; opting for high
tensile steel Q345, welded by automatic submerged-Arc processes.
Top flange 20mm,width140mm;Middle Flange 14mm height 500mm;bottom
flange20mm,width 140mm |
| Side beam | 25# channel steel(Q235) |
| Cross member | 16# channel steel(Q235) |
| Floor | 5mm checkered plate |
| Side wall | No |
| Front board | No |
| Axle | 3 axle FUWA brand 13T |
| Suspension | Mechanical suspension American type local brand |
| Leaf spring | Leaf spring 10pcs*90*13mm |
| Tire | 12R22.5-18pr double star brand 12pcs |
| Wheel rim | 9.0-22.5 better brand 12pcs |
| Kingpin | JOST brand 2” weld king pin |
| Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear 28T |
| Ladder | Mechanical ladder |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | Optional |
| Lights | LED 8 side lights and 2 rear lights 2 width lamp |
| Painting | Complete chassis sand blasting to clean rust ,1coat of
anticorrosive prime,2coats of final paint |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft
headwrench,four side light,two rear light |
| Date of delivery | 20 workdays after we received 30% of contract value T/T down
payment |

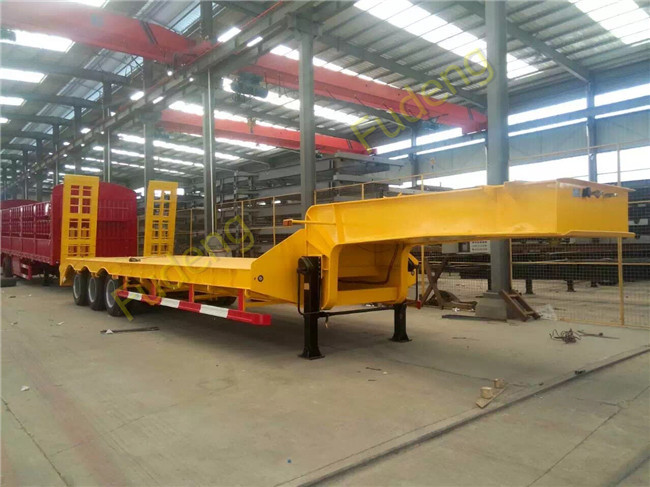

3 Axles low bed semi trailers With Mechanical Ramps .
60Tons Low bed semi trailers.
We can provide Hydraulic ramps / Hydraulic Folding Ramps /
Mechanical Ramps for you , You can Choose by yourself . the
Mechanical Ramps
can operata by yourself ,it's easy for you .and the Hydraulic and
Hydraulic Folding is convenient for you ;
Welcome to visit our factory!
