    Spring Ladder Gooseneck Low Bed Semi Trailer Carrying Capacity 65 Tons

    65 ton gooseneck low bed tri - axle low loader trailers with spring ladder for sale

    Product Introduction and Features

    FUDENG gooseneck low bed tri-axle trailers are expecially designed for the heavy duty equipment machines transport like the wheel loader excavator bulldozer etc. The specially designed low loader trailers can fixed to all kinds of road conditions .


    The ladder for thelow bed trailersare equiped with the spring , it muck easier to allow the machines loading to thelow bed tailer. The loader with spring can easily lift up and lay down . Just one person can deal with ladder. It's much convient for the transporting work . And for this ladder is welding together by the high strength steel , it' much stronger than the normal type which will make sure the safety of the loading .


    The high strength steel made main beam will make sure of the safety of the transport also both the semi trailer together with the machine wich will be transported .



    Specification


    Specifications
    Body
    DimensionOptional
    Payload65T
    Tare weightAbout 11T
    Bottom Platform4 mm Checkered Thickness

    Main beam


    Welding design I beam, connected by bolts and nuts, Q345B carbon steel material. Upper and lower plate is 20mm, middle plate is 10mm. height is 500 mm
    Side beamWelding design I beam. Height is 300mm.
    Through beam14# Channel
    LadderMechanical
    SuspensionMechanical
    Chassis
    Axle3 axles, 13T FD brand,16T Brakes pads
    Landing Gear28T Linkage style
    King Pin2.00 or 3.5 inch bolt-in king pin
    Leaf Spring90mm(W)*16mm(T)*10 Layer
    Braking System6 big air chamber, 3 axles synchronization valve
    Rim8.5-20*12pcs
    Tire12R22.5*12pcs
    AccessoriesOne standard tool box
    Spare tire rackOne
    Voltage24V
    Packing and shipping
    PaintingComplete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
    Shipping TermsBy Bulk Cargo/RORO

    65 ton low bed semi trailer

    Spring Ladder Gooseneck Low Bed Semi Trailer Carrying Capacity 65 Tons

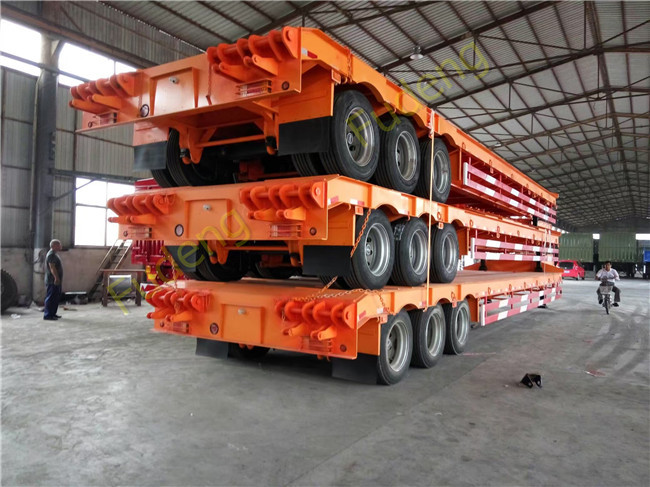

    The low bed trailers waiting to be shipped .


    Spring Ladder Gooseneck Low Bed Semi Trailer Carrying Capacity 65 Tons

    Advanced production equipment, modern testing equipment.

    First-class technical team and senior management personnel.

    Provide the most suitable for industry application of goods.


    Besides lowbed trailers. we also specialized in various semi trailers , tractors, trucks, construction equipment as well as spare parts
