Drop Deck 3 Axles Low Bed Semi Trailer With Side Wall Mechanical Ladder

Ask Lasest Price
Brand Name :	Shandong Fudeng
Model Number :	SDFDZH040816
Certification :	SGS , BV
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	800 Units Per Month
Delivery Time :	20 - 25 work work days after deposit
Price :	negotiation

Add to Cart

Product Details
Company Profile

Drop Deck 3 Axles Low Bed Semi Trailer With Side Wall Mechanical Ladder

3 axles low bed semi trailer , 100ton low bed drop deck trailer with side wall

Product Introduction and Features

3 axles 100 ton low bed trailer has the ability to transport the heavy duty machine like the excavator or the other type of heavy machines.

As the main product from our company, thislow bed trailerwe use all the good brand of spare parts like bpw or fuwa axles, the breaking valve is from WABCO, the landing gear for thisheavy duty low bed dorse treyler trailerwe use the JOST A400 landing gear .

We have specially strengthen the goose neck and the main beam also the side beam for thislow bed trailer. The details please refer to the photo bellow. The main beam we use the height of 550 mm to suit the heavy machine or engine transportation .

Specification

Specifications
Body
Dimension	13m×3.0m×1.7m (Outside)
Payload	100T
Tare weight	About 11T
Bottom Platform	4 mm Checkered Thickness
Main beam	Welding design I beam, connected by bolts and nuts, Q345B carbon steel material. Upper and lower plate is 20mm, middle plate is 10mm. height is 500 mm
Side beam	Welding design I beam. Height is 300mm.
Through beam	14# Channel
Ladder	Mechanical
Suspension	Mechanical
Chassis
Axle	3 axles, 13T FD brand,16T Brakes pads
Landing Gear	28T Linkage style
King Pin	2.00 or 3.5 inch bolt-in king pin
Leaf Spring	90mm(W)16mm(T)10 Layer
Braking System	6 big air chamber, 3 axles synchronization valve
Rim	8.5-20*12pcs
Tire	12R22.5*12pcs
Accessories	One standard tool box
Spare tire rack	One
Voltage	24V
Packing and shipping
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Shipping Terms	By Bulk Cargo/RORO

3 axle low bed semi trailers

Drop Deck 3 Axles Low Bed Semi Trailer With Side Wall Mechanical Ladder

2 axle low bed semi trailers

Drop Deck 3 Axles Low Bed Semi Trailer With Side Wall Mechanical Ladder

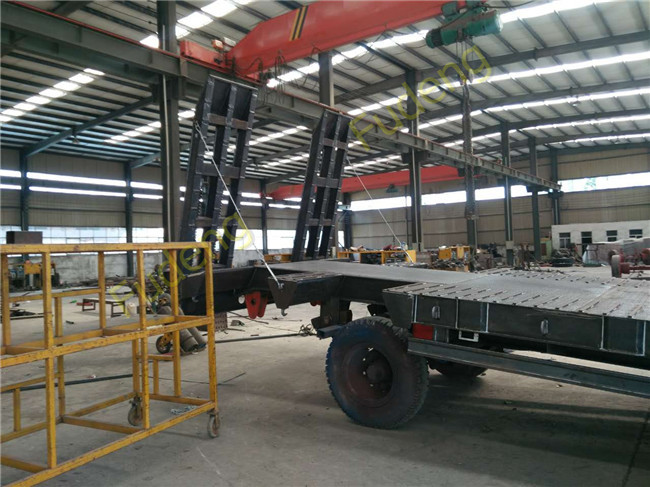

Specially strengthen for the goose neck to ensure the safety of the low bed trailer

Drop Deck 3 Axles Low Bed Semi Trailer With Side Wall Mechanical Ladder

The side beam and the side defence of thislow bed trailer, all of which are the stronger type.

Drop Deck 3 Axles Low Bed Semi Trailer With Side Wall Mechanical Ladder
