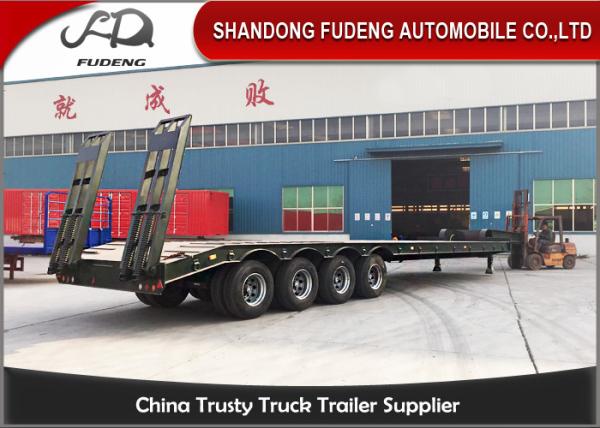

Heavy duty low flatbed trailer 4 axle low loader truck trailer
100tons low bed semi trailer
1. The hydraulic low bed trailer use through-going beam structure,
has frame structure with flat type and goosen neck type, also has
high integral strength, small weight, beautiful appearance, safe
and reliable operation.
2. The tri axle low bed semi trailer use advanced manufacture
technology, makes automatic submerged-arc welding for vertical
beam, use shot blasting treatment for intergral frame, removes
welding stress effectively.
Lowbed trailers After-Sales Service:
1). Traning of trailer operating and normal maintenance .
2). Regularly callback to know the vehicle's working status.
3). Supply the service of regular repair.
4). Solve the customer’s advisory.
5). The overseas engineers are always ready to deal with unexpected
needs.
6). 24 hours hotline.
7). CKD and SKD are available.
8). Faster, better and more professional.
LOW BED TRAILER Specification:
| Product Number | PLY8324B |
| Outside Dimensions | 13000x2500x1258(As the buyer's request) |
| Color/Logo | Customized |
| Tare Weight | 9.0ton |
| Rated Load | 60ton |
| Axle Brand | FUWA/BPW, other brand optional |
| No. of the Axle | 4pcs |
| Axle load | 13ton |
| Tyre Specations | 12R22.5,11.00R20, other optional |
| Wheel rim | 9.0-22.5 better brand 12pcs |
| Spare tire carrier | 1 set |
| No. of the Tyre | 12+1(Spare tyre) |
| King Pin | 90#/50# |
| Landing Led | JUSt brand two-speed, manual operating, heavy duty landing gear
28ton |
| Ladder | Mechanical ladder |
| Suspension | Mechanic/Air Bag/Independent Type Optional |
| Leaf Spring | 6pcs*90*8pcs |
| Brake System | Dual Lines Braking System With Automatic Air Chambers,Four double
and two single chamber |
| Electric Sustem | 24V, 7core socket, lights according to European standards. |
| Material of the Main Beam | Heavy duty and extra durability designed I beam; opting for high
tensile steel Q345, welded by automatic submerged-Arc processes.
Top flange 20mm,width140mm;Middle Flange 14mm height 500mm;bottom
flange20mm,width 140mm |
| Painting | Complete chassis sand blsting to clean rust,1 coat of
anticorrosive, 2 coats of final paint |
4 Axles low bed semi trailers.
100Tons Low bed semi trailers.
