Transport 60ton Heavy Duty Equipment Lowboy Trailer Optional
Dimensions
1.This series hydraulic low bed trailer applicable for the transportation of the mechanical equipment,
excavators, bulldozer, large
objects, highway construction equipment, large tanks, power plant
equipment or machine,and all sorts of steel products.
2. Low bed trailer dimension could be customized, we can manufacture it according to
your needs.
3.The axles of tri axle low bed semi trailer can be Fuwa/Bpw with different tonnages by your need with price
differences.
4.The suspensions can be: Air suspension, mechanic (leaf spring
suspension), bogie suspension
5.The loading deck can be concave beams, tire appeared
cover,totally flatbed, or extendable.
6.The loading ramps can be rear end designed, or front loading
ladders, which can be mechanic spring ladders and hydraulic
loading ramps by different needs.
LOW BED TRAILER Specification:
| Trailer Model | 3 Axle Low Bed Semi Truck Trailer |
| Overall Dimension(Lx W x H)(mm) | 17500*2800*1750 |
| Platform Size (LxWxH) (mm) | 10000*2800*800 |
| Loading Weight(KG) | 60000 |
| Axle Brand | FUWA 13TON |
| Axle Number | Three |
| Suspension system | Mechanical suspension/Air suspension customized |
| platform thickness | 5mm Diamond plate |
| Steel Spring | 10/10/10 90mm*13mm*10pcs leaf spring suspension |
| The material of Main beam | The height of the beam is 500 mm, upper plate is20mm, down plate is 20mm, middle plate is 10mm. |
| Side beam | 16mm 25#H-shaped steel beam |
| Tire Type and quantity | 825R16 12pcs triangle brand |
| Traction Pin | 90mm/50mm |
| Spare Wheel Bracket | 2 pieces |
| Tool Box | 2standard |
| Landing Gear | Standard 28 |
| Rim | 8.5-22.5 12units |
| Brake system | Dual Line braking system |
| Brake air chamber | T30/30+T30 6 brake chamber,one piece of 45L air tanks |
| Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. |
| One set 6-core standard Cable. |
| Side Guard | According to customer’s requirement |
| Color | optional |
| Packing |
NUDE, Polish with wax before shipping |

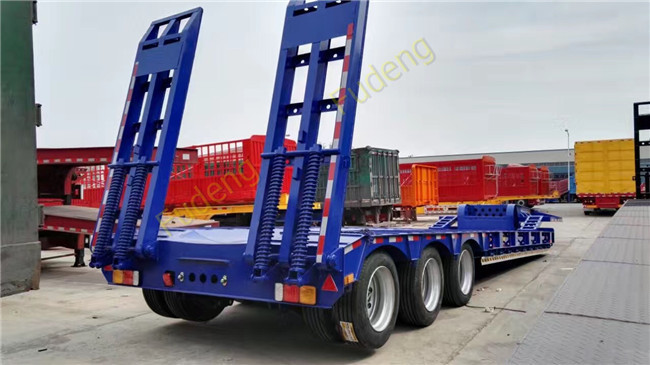

3 Axles 50ton low bed semi trailers With Mechanical ramps and the
ramps type you can choose by
yourself .

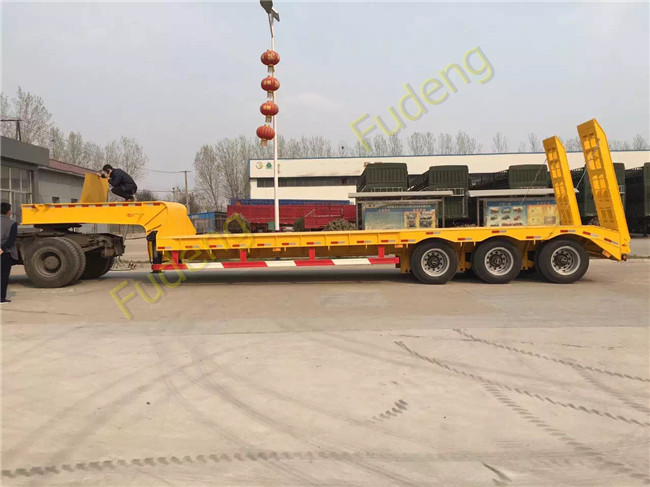

3 Axles 60Tons Low bed semi trailers.
If you transport goods width bigger than low bed trailer ,We can
set up the widen device for you ;
The low boy trailer's dimension and configurations can be
customized ,If you are interested in our products please leave your
messages and
Welcome to visit our factory anytime ,we can pick you up to Airport
and visit factory together ;
