Brand Name : | Shandong Fudeng |
Model Number : | SDFDZH040813 |
Certification : | ISO/ CCC |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 600 Units Per Month |
Delivery Time : | 20 - 30 work work days after deposit |
Price : | negotiation |
Product Introduction and Features
1 . The whole body adopts steel with good quality , and be
manufactured by advanced skills and strict producing managerial processes .
2 . Low flatbed semi-trailer series of products for a variety of
mechanical equipment , large objects , road construction equipment , large
tanks , power station equipment machines of various steel transports, versatile ,
fast and efficient .
Specification
Low bed semi traielr | |
Tare Weight | About 8.5T-13T |
Dimension | 12500-16500mm * 2500mm-3500mm*1650mm(Size can be choose freely) |
Loading Capacity | 40T-100T |
Axle | 16T/20T,FUWA/BPW Brand |
Rim | 9.00-22.5/8.00-20/8.5-20 |
Tire | 12.00R22.5/315 80R22.5 / 11.00R20 / 12.00R20 Brand can be optional |
Suspension | Mechanical suspension or Air suspension |
Spring Leaf | 90(W)mm*13(Thickness)mm*10 Layer(especial for exporting market) |
Support Leg | JOST brand |
Bottom Plateform | 4 / 5mm thickness diamond steel plate or can be optional |
Ladder | Manual type or Hydrulic type |
Gooseneck | For choose |
Break Chamber | WABCO |
ABS | Optional |
Valve | Wabco valve |
Light | LED light (especial for exporting market) |
Voltage | 24V |
Receptacle | 7ways (7 wire harness) |
Tool Box | One piece ,1m*0.5m*0.5m(Size can be choose freely)(Equipped with 1 unit Tire spanner, 1 unit gudgeon sleeve and i unit cranking bar) |
Painting | Complete Chassis sand blasting to clean rust, |

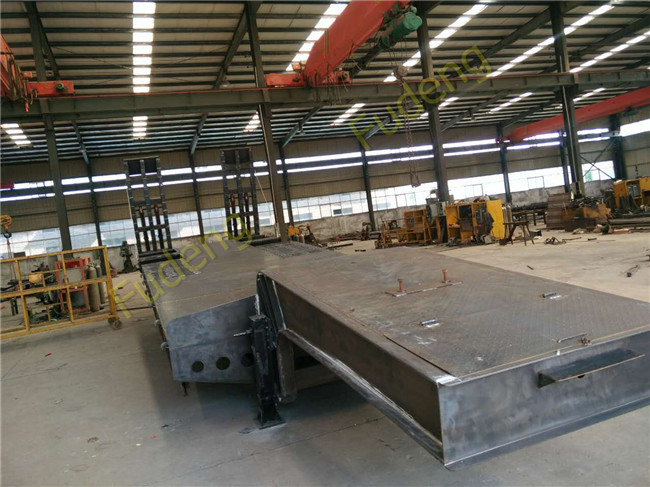

Welcome to visit our factory
Packaging & Shipping
Advanced production equipment, modern testing equipment.
First-class technical team and senior management personnel.
Provide the most suitable for industry application of goods.
Besides lowbed trailers. we also specialized in various semi trailers, tractors, trucks, construction equipment as well as spare parts .
![]() |
