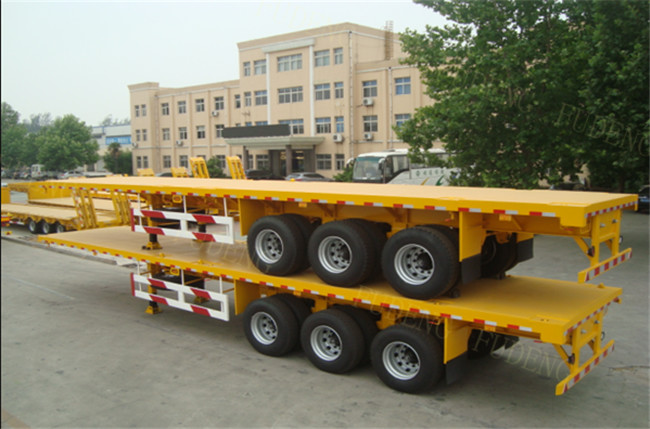

3 axle flatbed semi truck trailer for 40ft or 20ft container delivery price

Ask Lasest Price
Brand Name :	Fudeng
Model Number :	SDFD1704 Flatbed trailer
Certification :	CE, ISO, CCC, SGS, ADR
Payment Terms :	L/C, T/T or negotiate
Supply Ability :	600 sets per month
Delivery Time :	25-40 days after 30% deposit
Price :	negotiation

Add to Cart

Product Details
Company Profile

3 axle flatbed semi truck trailer for 40ft or 20ft container delivery price

Flatbed container trailers are versatile open trailers used to transport a wide range of products and materials. Also known as flat, float, flat deck, and high boy trailers, some of the common products they are used to haul are:

40ft container, 20ft container
Flat steel
Coiled steel
Channel steel
Rebar
Lumber
Pipe
Pre-cast concrete
Building materials
Other products that can be strapped down to a flat deck.

Specifications
Dimension	12.5m×2.5m×1.5m (Outside)
Payload	35T-75T
Tare weight	About 8.5T
Twist lock	4, 8, 12 units or customized
Chassis
Frame	Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam	Upper and lower plate is20mm,middle is10mm.height is 500 mm
Frame Floor	The Thickness is 3-8 mm flat bed
Axle	2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear	JOST (D200T)or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type/air suspension
Leaf Spring	90mm(W)13mm(T)10 Layer/90mm(W)16mm(T)10 Layer/ 100mm(W)16mm(T)10 Layer
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim	8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire	11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
ABS	Optional
Accessories	One standard tool box
Voltage	24V

3 axle flatbed semi truck trailer for 40ft or 20ft container delivery price

Fudeng trailer offers flatbed semi trailers for sale. Our extensive inventory of flatbeds provides a cost-effective selection of trailer configurations to meet your transportation needs.
