Tri-axle 50Tons flatbed container trailer truck for Carry container , hoses , cement bags

    Buy cheap Tri-axle 50Tons flatbed container trailer truck for Carry container , hoses , cement bags from wholesalers

    Buy cheap Tri-axle 50Tons flatbed container trailer truck for Carry container , hoses , cement bags from wholesalers
    • Buy cheap Tri-axle 50Tons flatbed container trailer truck for Carry container , hoses , cement bags from wholesalers
    • Buy cheap Tri-axle 50Tons flatbed container trailer truck for Carry container , hoses , cement bags from wholesalers

    Tri-axle 50Tons flatbed container trailer truck for Carry container , hoses , cement bags

    Ask Lasest Price
    Brand Name : FUDENG Brand
    Model Number : Flatbed container trailers
    Certification : BV,SGS, CNCA, CIQ .etc.
    Payment Terms : L/C, D/A,, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500Units Per Month
    Delivery Time : 20days after deposit
    Price : negotiation
    • Product Details
    • Company Profile

    Tri-axle 50Tons flatbed container trailer truck for Carry container , hoses , cement bags

    Tri-axle 50Tons flatbed container trailer truck for Carry container , hoses , cement bags


    FUDENG Flatbed container trailers provides high quality various types of with 40 ton to 60 ton loading capacity for carrying 20ft 40ft containers, pipe, steel plate,lumber, Cement Bags,and other heavy equipments. we can also custom bulid the in accordance with your specific requirements. because the long service life and low maintenance of FUDENG have been well accepted by the customers across the world.


    What we can provide you

    1. Professional technical support.

    2. Reasonable financial suggestion.

    3. Economical Transportation planning.

    4. Comprehensive after-sale service

    Specification of 40 feet flatbed container trailer
    MAIN SPECIFICATION
    Type40ft flatbed semi trailer
    Function2x 20ft and 1x40ft container or other stuff
    Overall dimension12500x2500x1600mm
    Tare weight7000kg
    Loading weight50000kg
    Main beam

    Material is Q345B, The height of the beam is 500 mm,

    upper plate is14mm, down plate is 16mm,middle plate is 8mm.

    Boundary/Side beam16U shaped steel or I shaped steel
    Detachable front plateOne piece, height: 1.5m, all steel plate
    King pinJOST brand, 50mm or 90mm
    Landing gear28 ton, two-speed landing leg, FUWA brand
    Axle3x13ton, heavy duty axle
    Axle brandFUWA brand
    Container locks12 pieces
    Suspension typeLeaf spring suspension
    Leaf spring10/10/10 90mm width and 13mm thickness
    TireTriangle brand 12R22.5 12+1 spare piece
    Rim9.0-22.5 12+1 spare rim
    platform thickness3mm diamond plate
    Brake ChamberSix double big brake chamber
    Spare tire carrier2 pieces tire carrier
    Emergency valve

    WABCO Brand, RE 6 relay valve; T30/30+T30 Spring brake chamber;

    one piece of 45L air tanks

    Tail lightsLED type
    Voltage24V
    Receptacle7ways (7 wire harness)
    Fender2 pieces, light steel, left+right
    Tool box1 piece, 1m x 0.5m x 0.5m,with some small gadgets
    PaintingComplete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint

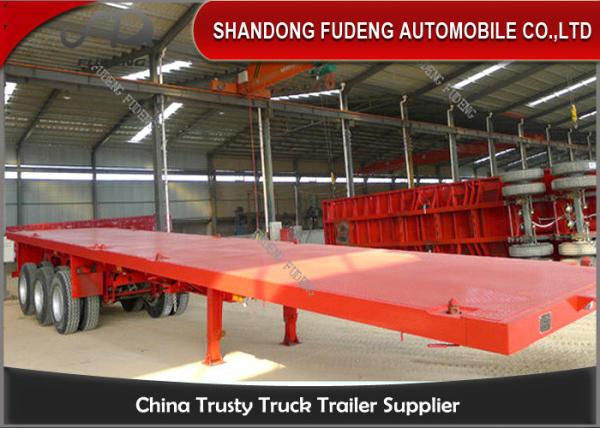

    40ft Flatbed container trailers.

    Tri-axle 50Tons flatbed container trailer truck for Carry container , hoses , cement bags

    We can design

    · 20ft, 40ft Flatbed container trailer

    · 4, 8, 12 units twistlocks

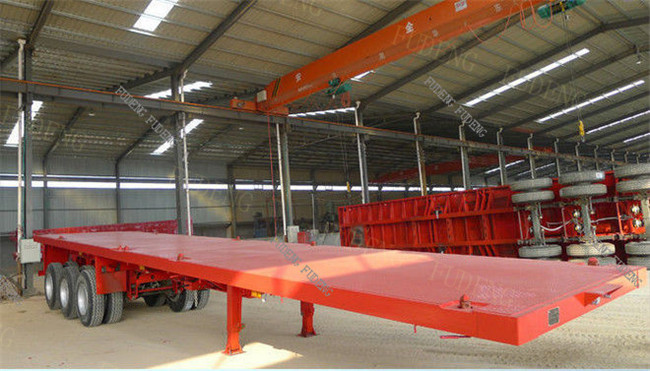

    50Tons Flatbed container trailers.
    Tri-axle 50Tons flatbed container trailer truck for Carry container , hoses , cement bags

    Package&Shipping.

    Tri-axle 50Tons flatbed container trailer truck for Carry container , hoses , cement bags


    Welcome to visit our factory!
