80 Tons Low Bed Semi Trailer With Mechanical Ladder BPW / FUWA Axle

    Buy cheap 80 Tons Low Bed Semi Trailer With Mechanical Ladder BPW / FUWA Axle from wholesalers

    Buy cheap 80 Tons Low Bed Semi Trailer With Mechanical Ladder BPW / FUWA Axle from wholesalers
    • Buy cheap 80 Tons Low Bed Semi Trailer With Mechanical Ladder BPW / FUWA Axle from wholesalers
    • Buy cheap 80 Tons Low Bed Semi Trailer With Mechanical Ladder BPW / FUWA Axle from wholesalers

    80 Tons Low Bed Semi Trailer With Mechanical Ladder BPW / FUWA Axle

    Ask Lasest Price
    Brand Name : FUDENG Brand Low bed trailer
    Model Number : SDFDZH040832
    Certification : ISO , SGS , BV
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 900 Units Per Month
    Delivery Time : 20 - 30 work work days after deposit
    Price : negotiation
    • Product Details
    • Company Profile

    80 Tons Low Bed Semi Trailer With Mechanical Ladder BPW / FUWA Axle

    3 axle 80 tons low loader trailer , semi lowbed trailer for sale South Africa

    The main beam is specially designed, from the height of the main beam , the thickness of all the plates , also the width of the plates . Becase the main beam is the most important part for the semi trailers . And this main beam is 150 tons designed main beam , even on the bad condition roads , it will transport the 100 ton cargo easily .


    The king pin we equiped with the assembled tpye , which means for this lowbed trailer , we have both 3.5'' and the 2.0''. Both of this two king pin we will prepare for the customers and this will be much easiler if there are different kind of trucks .


    In order to save the cost the shipping transportation , we also have specially designedlowbed trailers to meet different requirement.


    Specification


    DimensionOptional
    Payload100T
    Tare weightAbout 11T
    Bottom Platform5 mm Checkered Thickness

    Main beam


    Welding design I beam, connected by bolts and nuts, Q345B carbon steel material. Upper and lower plate is 20mm, middle plate is 10mm. height is 500 mm
    Side beamWelding design I beam. Height is 300mm.
    Through beam14# Channel
    LadderMechanical
    SuspensionMechanical
    Chassis
    Axle2 or 3 axles
    Landing GearJOST 28T Linkage style
    King PinJOST 2.00 or 3.5 inch bolt-in king pin
    Leaf Spring90mm(W)*16mm(T)*10 Layer
    Pneumatic Braking System6 big air chamber, 3 axles synchronization valve (WABCO brand)
    Rim8.5-20*12pcs
    Tire12R22.5*12pcs
    AccessoriesOne standard tool box
    Spare tire rackone
    Voltage24V
    Packing and shipping
    PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
    Shipping TermsBy Bulk Cargo/RORO

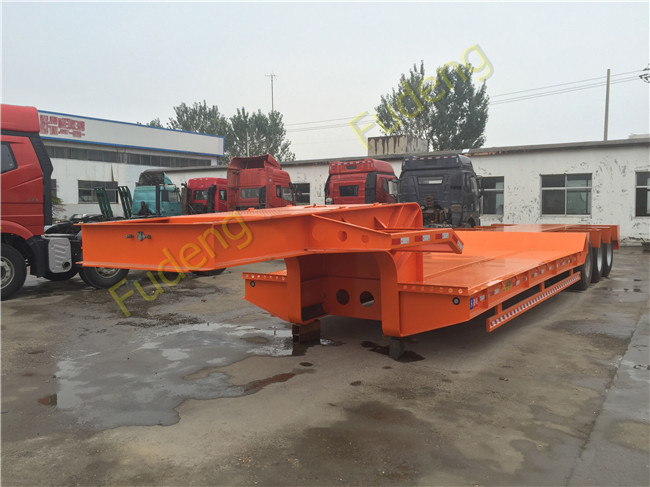

    3 axle 80Ton low bed semi trailer


    80 Tons Low Bed Semi Trailer With Mechanical Ladder BPW / FUWA Axle


    Workshop


    80 Tons Low Bed Semi Trailer With Mechanical Ladder BPW / FUWA Axle


    80 Tons Low Bed Semi Trailer With Mechanical Ladder BPW / FUWA Axle


    1.Manufacturer direct sale , quality guaranteed, low price.
    Except standard products we can also produce products base on customers' requirement.


    2.We have our own factory,We we are the manufacturer of various trailers .
    We can offer you the high quality but the best price.


    Welcome to visit our factory!
