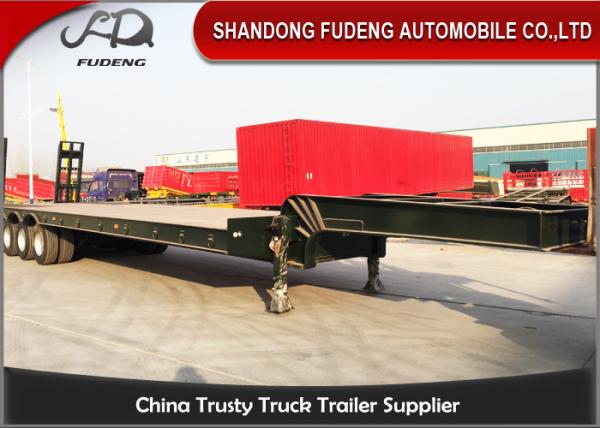

    100 Ton Heavy Equipment Lowboy Trailer , BPW Axle Lowboy Flatbed Trailer

    Ask Lasest Price
    Brand Name : FUDENG Brand Low bed trailer
    Model Number : SDFDZH040831
    Certification : CCC CE ISO
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 900 Units Per Month
    Delivery Time : 20 - 30 work work days after deposit
    Price : negotiation
    • Product Details
    • Company Profile

    100 Ton Heavy Equipment Lowboy Trailer , BPW Axle Lowboy Flatbed Trailer

    100 ton heavy equipment transportation truck trailer 50 ton lowbed trailer BPW axle for sale

    Main featurer

    1.The cargo table is arched ,to avoiding concentrated force and of sound construction .Compared with other company :Their cargo table is flat that easy to concave and beam damage


    2.Main structure:The main steel structure adopts Q345 high strength structural steel .Compared with the channel,our main steel comes with high strength, strong bearing capacity, not easy to deformation and long service life .


    3.Reinforcement design :the suspension system of our lowbed semi-trailer, will be designed on the strengthening device and between the beam and side beam which can greatly improve the torsional performance of the container and to prolong service life.


    Specification


    Dimensions
    Tare Weight10000kg
    Payload60000kg
    Total Weight50000-100000kg
    Overall Length16000mm
    Overall Width3000mm
    Overall Height2900mm
    Specifications
    Main ChassisOne piece chassis fabricated of special steel
    AxelsSquare beam 16T axels, (Five Years Warranty on the Axel Beams)
    SuspensionHeavy duty mechanical suspension system (BPW type)
    King PinTrailer is equipped with 2” or 3.5” king pin (as requested)
    TyresTrailer supplied with 12 tyres plus 1 spare wheel
    Braking systemGerman made WABCO plus mechanical handbrake system
    load sensing device
    Air actuated automatic works
    Paintingtreatment of sand blasting
    Two layers of primer
    two layers of final coating of colour
    ElectricalTrailer equipped with 24 volts full electrical circuit, with rear and side lamps, reflectors and license plate light

    All trailers supplied with 1200 Litres Diesel Tank, One Water Tank, Spare wheel carrier for two tyres & tool box

    4 axle 100ton low bed semi trailer




    1.Manufacturer direct sale , quality guaranteed, low price.
    Except standard products we can also produce products base on customers' requirement.


    2.We have our own factory,We we are the manufacturer of various trailers .
    We can offer you the high quality but the best price.


    Welcome to visit our factory!
