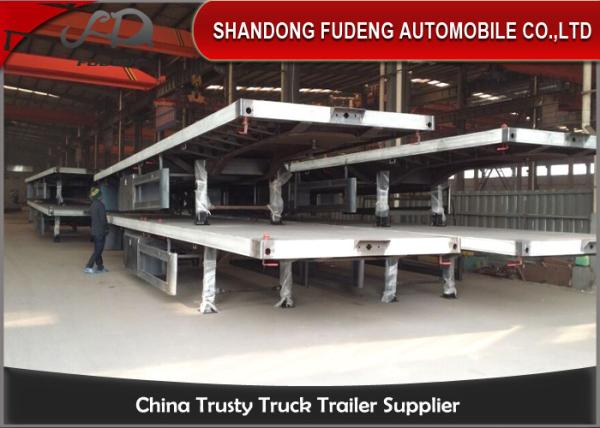

    40 Feet Flatbed Semi Trailer Container Semi-Trailer Fuwa Axle For Sale

    Ask Lasest Price
    Brand Name : Fudeng
    Model Number : SDFD1704 Flatbed trailer
    Certification : CE, ISO, CCC, SGS, ADR
    Payment Terms : L/C, T/T or negotiate
    Supply Ability : 600 sets per month
    Delivery Time : 25-40 days after 30% deposit
    Price : negotiation
    • Product Details
    • Company Profile

    40 Feet Flatbed Semi Trailer Container Semi-Trailer Fuwa Axle For Sale

    40 feet flatbed semi trailer for sale container semi-trailer Fuwa axle



    Fudeng provides a lightweight, high load capacity flatbed trailer to meet today’s unique and special load demands. Fudeng’s special process of forming the steel beams prior to the final heat treatment of the metal, intern maintains the strength properties of the alloy and enhances the structural integrity of the design.


    Overall Dimension(mm)12500x2500x3400
    Loading Capacity(kg)50000
    ChassisHeavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm, width140mm; Middle flange 8mm; Bottom flange 16mm, width 140mm.
    AxleFUWA or BPW, 3 units
    SuspensionChinese mechanical 3-axle suspension
    KingpinJOST brand, 2" or 3.5"
    Landing GearJOST brand two-speed, manual operating, heavy duty landing gear
    Tire12.00R20(Option: 12.00-20, 11.00-20, 11.00R20, 12R22.5
    Brake SystemWABCO RE6 relay valve; T30/30 spring brake chamber; 40L air tanks; With ABS
    AccessoriesOne standard tool box, one spare tire carrier

    Main characters:

    • Frame: The frame is manufacture by a structure, which are made of high strength steel. The main beam is designed reasonably to get a balanced consideration of the intensity, rigidity and toughness, maintaining a low center of gravity, heavy loading mass, not easy to be distorted.
    • Axles: The axle can be selected in different famous brand of BPW, L1, JII and FUWA ect. domestic and overseas. Also, the ABS system can be optional with Haldex and WABCO etc., can be greatly increase the stability and safety.

    40 Feet Flatbed Semi Trailer Container Semi-Trailer Fuwa Axle For Sale


    40 Feet Flatbed Semi Trailer Container Semi-Trailer Fuwa Axle For Sale


    Highly experienced and qualified team of experts is hired by our company, who possess profound in their respective work domain. Due to their in-depth knowledge and rich experience, we have been able to cater these products according to the specific requirements of the customers. Our experienced quality controllers keep a close eye on entire procedure from the very beginning of procuring raw material till the last delivery of our consignment.
