Flat bed Container Semi Truck Trailer Double Axle 20Ft 40Ft spring suspension

Ask Lasest Price
Brand Name :	Fudeng
Model Number :	SDFD1704 Flatbed trailer
Certification :	CE, ISO, CCC, SGS, ADR
Payment Terms :	L/C, T/T or negotiate
Supply Ability :	600 sets per month
Delivery Time :	25-40 days after 30% deposit
Price :	negotiation

Add to Cart

Product Details
Company Profile

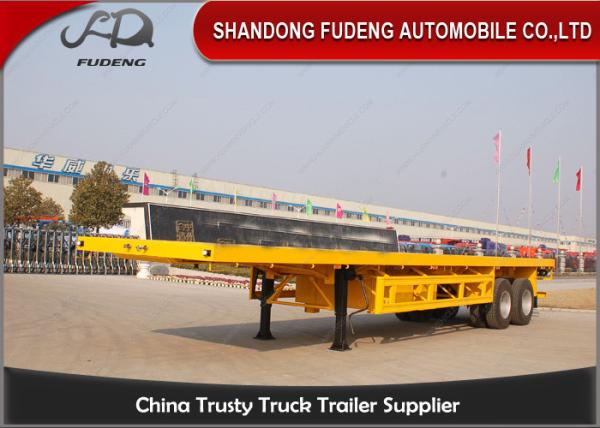

Flat bed Container Semi Truck Trailer Double Axle 20Ft 40Ft spring suspension

Flatbed Semi Trailers is a very broadly used term in the trailer industry. Fudeng Trailers manufactures a full line of flatbed trailers for sale. Flatbed Trailers is defined as having the deck over the tires with no fenders. There are usually stake pockets and container locks on the sides of the trailer.

Overall Dimension(mm)	12500x2500x3400
Loading Capacity(kg)	50000
Chassis	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm, width140mm; Middle flange 8mm; Bottom flange 16mm, width 140mm.
Axle	FUWA or BPW, 3 units
Suspension	Chinese mechanical 3-axle suspension
Kingpin	JOST brand, 2" or 3.5"
Landing Gear	JOST brand two-speed, manual operating, heavy duty landing gear
Tire	12.00R20(Option: 12.00-20, 11.00-20, 11.00R20, 12R22.5)
Brake System	WABCO RE6 relay valve; T30/30 spring brake chamber; 40L air tanks; With ABS
Accessories	One standard tool box, one spare tire carrier

Specifications can choose:

High Quality Body with side walls
BPW, FUWA or Certificated Chinese brand Axles
ABS and EBS brake system
JOST or Chinese brand parking leg and king pin
Air and Mechanical Suspension
Strength Chassis Construction
Front Axle Lifting
Steel or Aluminum Rims

Flat bed Container Semi Truck Trailer Double Axle 20Ft 40Ft spring suspension
